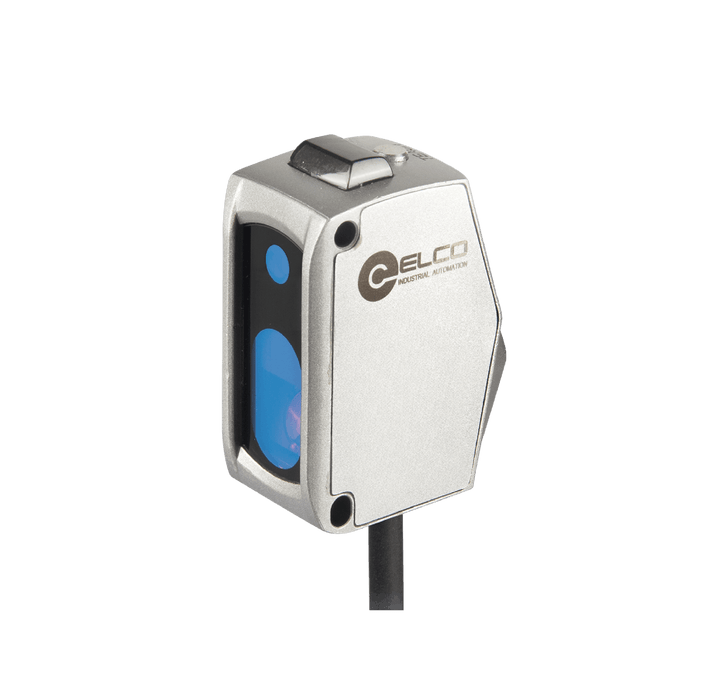

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110…1000 mm, Resolution 1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM40-KL1000CB6/485

SKU OSM40-KL1000CB6/485
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110…1000 mm, Resolution 1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110…1000 mm, Resolution 1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Detection method CMOS ranging
Light source Red laser / Class 2
Spot size 2 mm @ 600 mm
Sensing range 110 … 1000 mm
Resolution 1 mm
Connection Cable
IP rating IP67
Connection type 2 m, PVC
Anti-ambient light ≤ 3000 lux
Repeatability 0.5 mm @ 110 ... 400 mm & 1 mm @ 400 ... 600 mm & 3 mm @ 600 … 100

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40_V1.0.stp
Manual UM_SP_OSM40-485_V1.0_EN&CN.pdf
