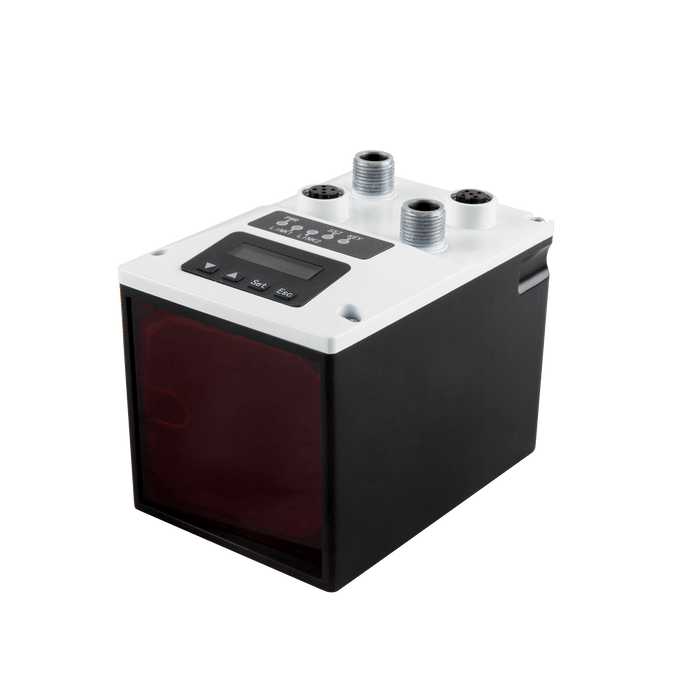

Distance Sensor, OSM300-Series, Retro-reflective Laser Distance Sensor, Red laser, Operating range 0.15…100 m, Repeatability 2 mm, PROFINET, SSI, 18…30V DC, -20…55°C, IP67, M12 connector

OSM300-RPL100PNSIQ12

SKU OSM300-RPL100PNSIQ12
by ELCO Industrial Automation

Distance Sensor, OSM300-Series, Retro-reflective Laser Distance Sensor, Red laser, Operating range 0.15…100 m, Repeatability 2 mm, PROFINET, SSI, 18…30V DC, -20…55°C, IP67, M12 connector

$2,088.96 - $2,088.96
$2,088.96
$2,088.96 - $2,088.96
$2,088.96
Availability:
In stock

Distance Sensor, OSM300-Series, Retro-reflective Laser Distance Sensor, Red laser, Operating range 0.15…100 m, Repeatability 2 mm, PROFINET, SSI, 18…30V DC, -20…55°C, IP67, M12 connector

Specifications

Connection Connector
IP rating IP67
Connection type 2 × M12, 4-pin + 2 × M12, 4-hole
Repeatability 2 mm
Ambient temperature -20 … +55 ℃
Response time 2 ms
Spot size 5 mm + ( 2 mm × distance，unit : m ）
Anti-ambient light ≤ 100000 lux
Light source Red laser / Class 2
Housing Material Die-cast alumin

No additional information at this time.

Downloads

CE CE_SP_OSM300_V1.0_EN.pdf
Datasheet DS_SP_OSM300-RPL_V1.0_EN.pdf
3D Drawing CAD_SP_OSM300_V1.0.stp
Manual UM_SP_OSM300-RPL_V1.0_EN&CN.pdf
Configuration file Config_SP_OSM300-RPL_V1.0.zip
