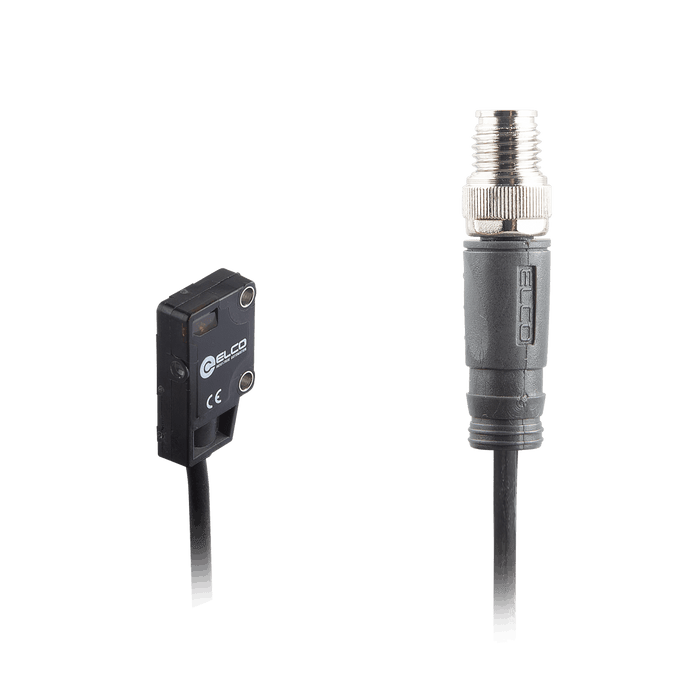

Photoelectric Sensor, OS4B-Series, Side-Opposed, Emitter, Red beam, Operating range 1 m, 10…30V DC, -10…55°C, IP67, 0.3 m cable + M8 4-pin connector

os4b-s6-03-q8

SKU OS4B-S6-0.3-Q8
by ELCO Industrial Automation

Photoelectric Sensor, OS4B-Series, Side-Opposed, Emitter, Red beam, Operating range 1 m, 10…30V DC, -10…55°C, IP67, 0.3 m cable + M8 4-pin connector

$15.50 - $15.50
$15.50
$15.50 - $15.50
$15.50
Availability:
In stock

Photoelectric Sensor, OS4B-Series, Side-Opposed, Emitter, Red beam, Operating range 1 m, 10…30V DC, -10…55°C, IP67, 0.3 m cable + M8 4-pin connector

Specifications

Sensing range 1 m
Connection type 0.3 m cable + M8, 4-pin
Detection method Opposed (Emitter)
Light source Red LED
Spot size 35 mm @ 1 m
Supply voltage 10 ... 30 V DC
Ambient temperature -10 … +55 ℃
Anti-ambient light ≤ 5000 lux
Housing material PC + PBT
Connection M8 Pigtail
IP rating IP67
