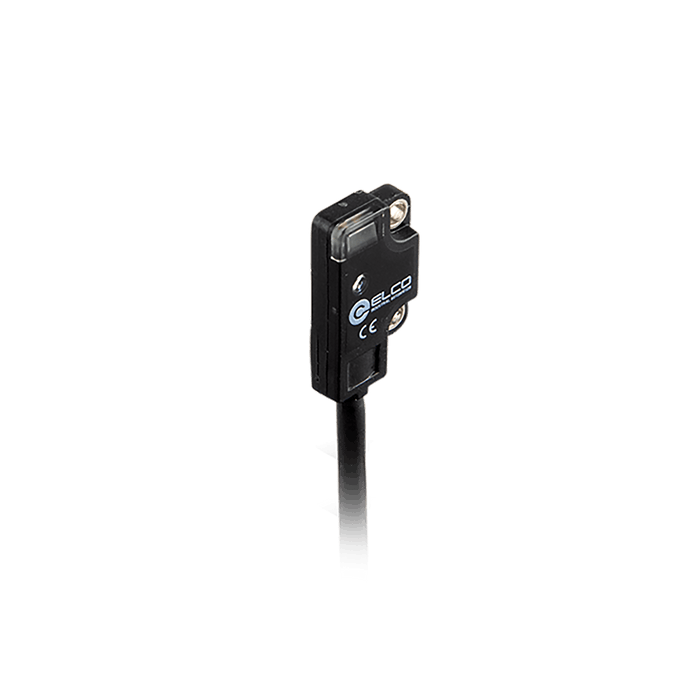

Photoelectric Sensor, OS4A-Series, Front-Opposed, Receiver, Red beam, Operating range 500 mm, PNP, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

OS4A-ELP6

SKU OS4A-ELP6
by ELCO Industrial Automation

Photoelectric Sensor, OS4A-Series, Front-Opposed, Receiver, Red beam, Operating range 500 mm, PNP, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$39.37 - $39.37
$39.37
$39.37 - $39.37
$39.37
Availability:
In stock

Photoelectric Sensor, OS4A-Series, Front-Opposed, Receiver, Red beam, Operating range 500 mm, PNP, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Detection method Opposed (Receiver)
Sensing range 500 mm
Output type PNP
Output status L.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -10 … +55 ℃
IP rating IP67
Connection Cable
Anti-ambient light ≤ 5000 lux
Load current ≤ 50 mA

No additional information at this time.

Downloads

CE CE_SP_OS4_V1.0_EN.pdf
Datasheet DS_SP_OS4_V1.0_EN.pdf
3D Drawing CAD_SP_OS4A_V1.0.stp
Manual UM_SP_OS4A-SE_V1.0_EN&CN.pdf
