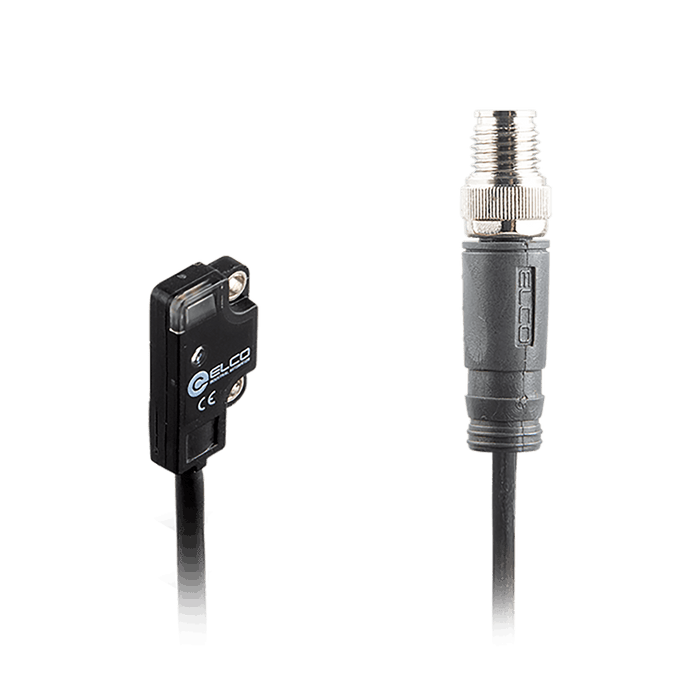

Photoelectric Sensor, OS4A-Series, Front-Opposed, Receiver, Red beam, Operating range 500 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

os4a-eln6-03-q8

SKU OS4A-ELN6-0.3-Q8
by ELCO Industrial Automation

Photoelectric Sensor, OS4A-Series, Front-Opposed, Receiver, Red beam, Operating range 500 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

$22.23 - $22.23
$22.23
$22.23 - $22.23
$22.23
Availability:
In stock

Photoelectric Sensor, OS4A-Series, Front-Opposed, Receiver, Red beam, Operating range 500 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

Specifications

Load current ≤ 50 mA
Connection type 0.3 m cable + M8, 4-pin
Anti-ambient light ≤ 5000 lux
Ambient temperature -10 … +55 ℃
Housing material PC + PBT
Connection M8 Pigtail
IP rating IP67
Detection method Opposed (Receiver)
Sensing range 500 mm
Output type NPN
Switching frequency 800 Hz
