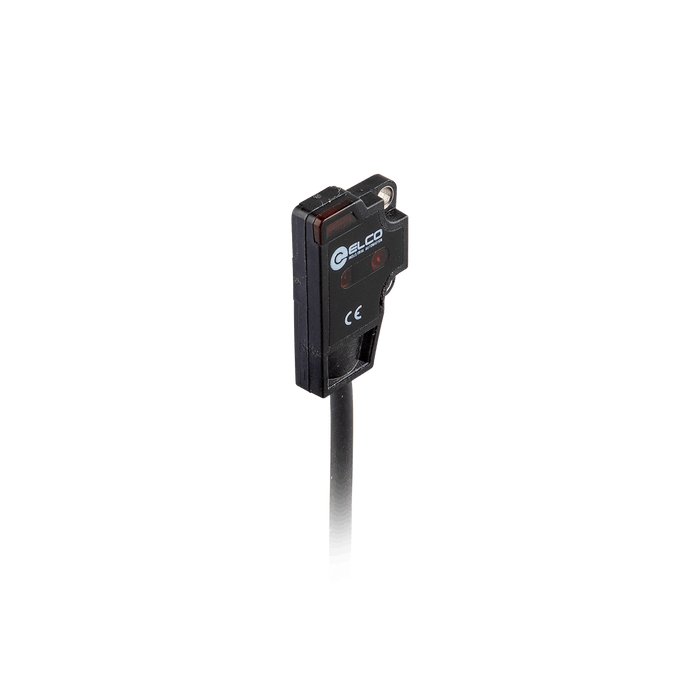

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Point light, Operating range 5...30 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

OS4-AKS30LN6

SKU OS4-AKS30LN6
by ELCO Industrial Automation

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Point light, Operating range 5...30 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$60.21 - $60.21
$60.21
$60.21 - $60.21
$60.21
Availability:
In stock

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Point light, Operating range 5...30 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

Specifications

Output status L.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Detection method BGS Diffused
Sensing range 5 … 30 mm
Light source Red LED
Spot size 4 mm @ 30 mm
Output type NPN
Load current ≤ 50 mA
Anti-ambient light ≤ 10000 lux
Connection Cable
Connection type 2 m, PVC

No additional information at this time.

Downloads

CE CE_SP_OS4_V1.0_EN.pdf
UL UL_SP_OS4_V1.0_EN.pdf
Datasheet DS_SP_OS4_V1.0_EN.pdf
3D Drawing CAD_SP_OS4_V1.0.stp
Manual UM_SP_OS4-AKS_V1.0_EN&CN.pdf
