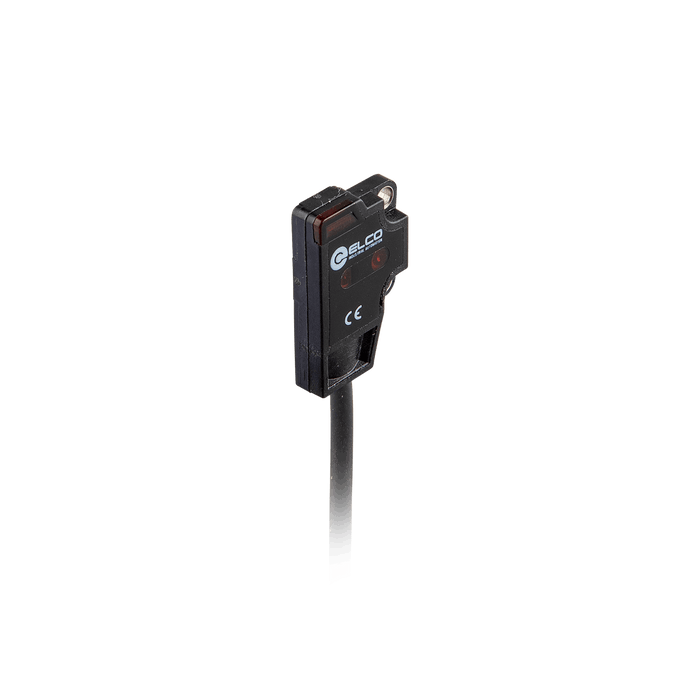

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Point light, Operating range 4...15 mm, PNP, D.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

OS4-AKS15DP6

SKU OS4-AKS15DP6
by ELCO Industrial Automation

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Point light, Operating range 4...15 mm, PNP, D.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$60.21 - $60.21
$60.21
$60.21 - $60.21
$60.21
Availability:
In stock

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Point light, Operating range 4...15 mm, PNP, D.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Spot size 3 mm @ 15 mm
Output type PNP
Output status D.O
Detection method BGS Diffused
Sensing range 4 … 15 mm
Light source Red LED
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 50 mA
Ambient temperature -10 … +55 ℃
Anti-ambient light ≤ 10000

No additional information at this time.

Downloads

CE CE_SP_OS4_V1.0_EN.pdf
UL UL_SP_OS4_V1.0_EN.pdf
Datasheet DS_SP_OS4_V1.0_EN.pdf
3D Drawing CAD_SP_OS4_V1.0.stp
Manual UM_SP_OS4-AKS_V1.0_EN&CN.pdf
