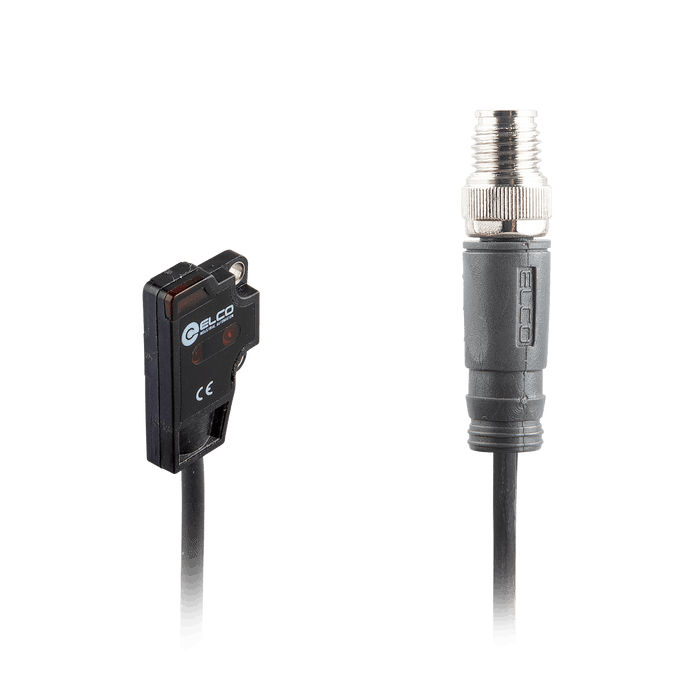

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 5...30 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 3-pin connector

os4-ak30ln6-03-q83

SKU OS4-AK30LN6-0.3-Q8.3
by ELCO Industrial Automation

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 5...30 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 3-pin connector

$35.03 - $35.03
$35.03
$35.03 - $35.03
$35.03
Availability:
In stock

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 5...30 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 3-pin connector

Specifications

Sensing range 5 … 30 mm
Light source Red LED
Spot size 8 mm @ 30 mm
Detection method BGS Diffused
Output type NPN
Connection type 0.3 m cable + M8, 3-pin
Ambient temperature -10 … +55 ℃
Anti-ambient light ≤ 10000 lux
Housing material PC + PBT
Connection M8 Pigtail
IP rating IP67
