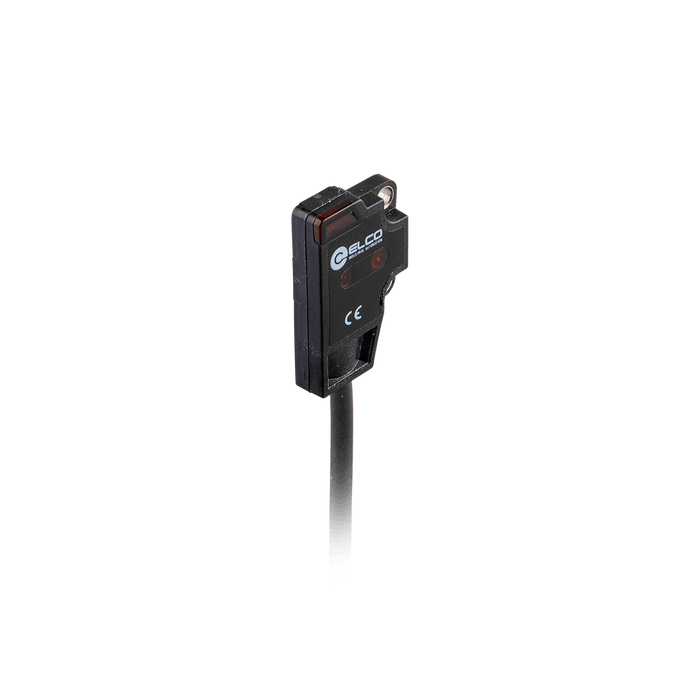

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

OS4-AK15LN6

SKU OS4-AK15LN6
by ELCO Industrial Automation

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$60.21 - $60.21
$60.21
$60.21 - $60.21
$60.21
Availability:
In stock

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

Specifications

Detection method BGS Diffused
Connection type 2 m, PVC
Sensing range 4 … 15 mm
Light source Red LED
Housing material PC + PBT
Connection Cable
IP rating IP67
Special characteristics Fixed distance BGS
Spot size 3 mm @ 15 mm
Output type NPN
Output status L.O
Switching frequency 800 Hz

No additional information at this time.

Downloads

CE CE_SP_OS4_V1.0_EN.pdf
UL UL_SP_OS4_V1.0_EN.pdf
Datasheet DS_SP_OS4_V1.0_EN.pdf
3D Drawing CAD_SP_OS4_V1.0.stp
Manual UM_SP_OS4-AK_V1.0_EN&CN.pdf
