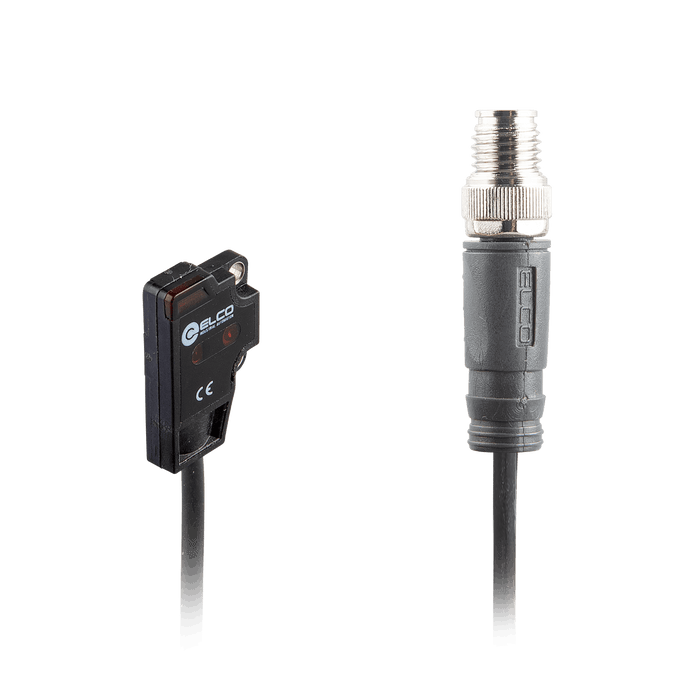

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, PNP, D.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

os4-ak15dp6-03-q8

SKU OS4-AK15DP6-0.3-Q8
by ELCO Industrial Automation

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, PNP, D.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

$35.03 - $35.03
$35.03
$35.03 - $35.03
$35.03
Availability:
In stock

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, PNP, D.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

Specifications

IP rating IP67
Detection method BGS Diffused
Sensing range 4 … 15 mm
Light source Red LED
Spot size 3 mm @ 15 mm
Output type PNP
Output status D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 50 mA
Ambient temperature -10 … +55 ℃
Anti-ambient light ≤ 10000 lux
