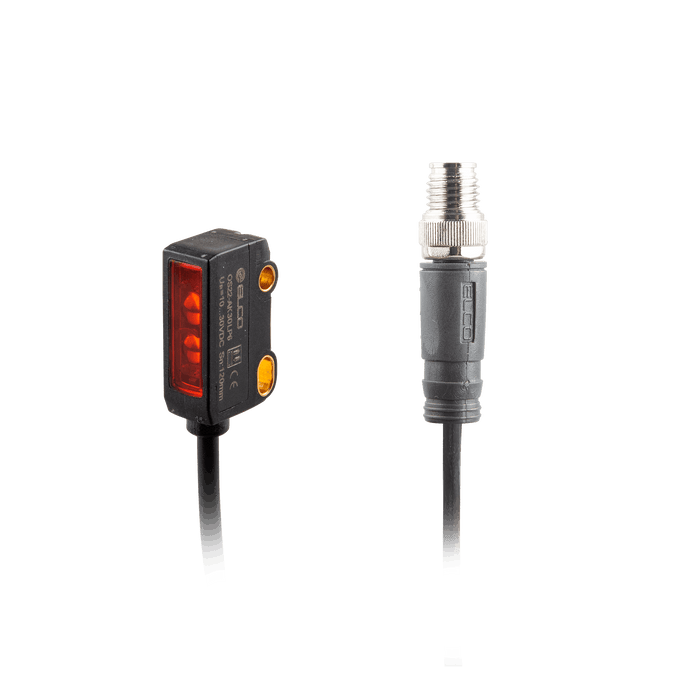

Photoelectric Sensor, OS22-Series, Opposed, Emitter, Infrared beam, Operating range 2 m, 10…30V DC, -10…50°C, IP67, 0.3 m cable + M8 4-pin connector

os22-s6-03-q8i

SKU OS22-S6-0.3-Q8/I
by ELCO Industrial Automation

Photoelectric Sensor, OS22-Series, Opposed, Emitter, Infrared beam, Operating range 2 m, 10…30V DC, -10…50°C, IP67, 0.3 m cable + M8 4-pin connector

$21.81 - $21.81
$21.81
$21.81 - $21.81
$21.81
Availability:
In stock

Photoelectric Sensor, OS22-Series, Opposed, Emitter, Infrared beam, Operating range 2 m, 10…30V DC, -10…50°C, IP67, 0.3 m cable + M8 4-pin connector

Specifications

Connection type 0.3 m cable + M8, 4-pin
Sensing range 2 m
Light source Infrared LED
Spot size 80 mm @ 1 m
Supply voltage 10 ... 30 V DC
Ambient temperature -10 … +50 ℃
Anti-ambient light ≤ 5000 lux
Housing material PC + PBT
Connection M8 Pigtail
IP rating IP67
Detection method Opposed (Emitter)
