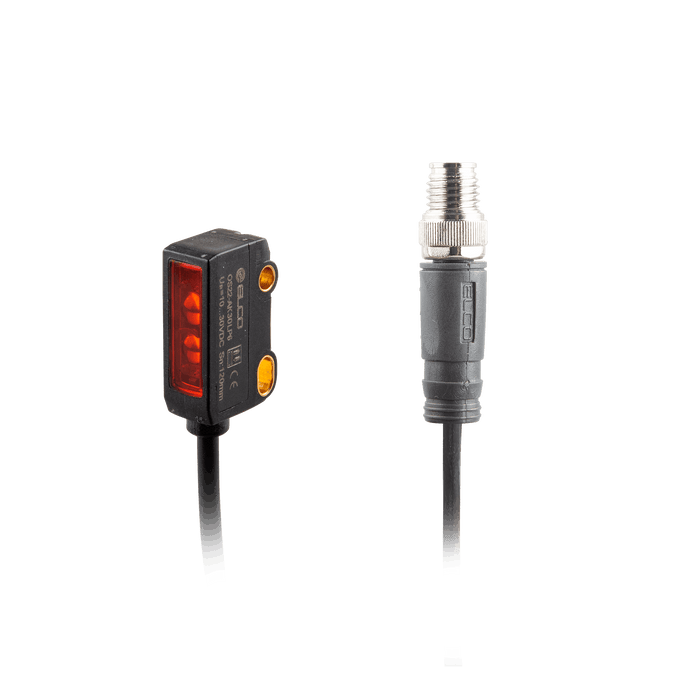

Photoelectric Sensor, OS22-Series, Opposed, Receiver, Infrared beam, Operating range 2 m, NPN, L.O, 10…30V DC, -10…50°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 3-pin connector

os22-eln6-03-q83i

SKU OS22-ELN6-0.3-Q8.3/I
by ELCO Industrial Automation

Photoelectric Sensor, OS22-Series, Opposed, Receiver, Infrared beam, Operating range 2 m, NPN, L.O, 10…30V DC, -10…50°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 3-pin connector

$28.55 - $28.55
$28.55
$28.55 - $28.55
$28.55
Availability:
In stock

Photoelectric Sensor, OS22-Series, Opposed, Receiver, Infrared beam, Operating range 2 m, NPN, L.O, 10…30V DC, -10…50°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 3-pin connector

Specifications

Connection type 0.3 m cable + M8, 3-pin
IP rating IP67
Anti-ambient light ≤ 5000 lux
Housing material PC + PBT
Detection method Opposed (Receiver)
Sensing range 2 m
Output type NPN
Output status L.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
