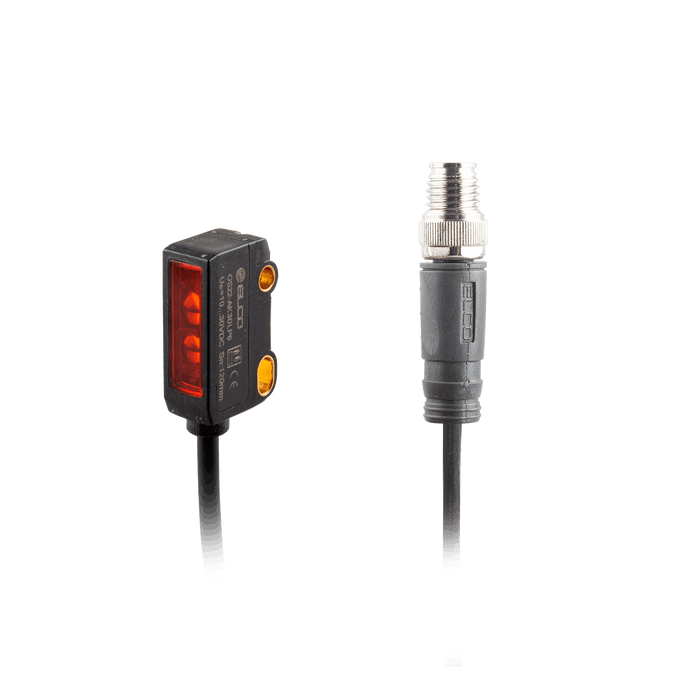

Photoelectric Sensor, OS22-Series, Opposed, Receiver, Infrared beam, Operating range 2 m, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

os22-edp6-03-q8i

SKU OS22-EDP6-0.3-Q8/I
by ELCO Industrial Automation

Photoelectric Sensor, OS22-Series, Opposed, Receiver, Infrared beam, Operating range 2 m, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

$28.55 - $28.55
$28.55
$28.55 - $28.55
$28.55
Availability:
In stock

Photoelectric Sensor, OS22-Series, Opposed, Receiver, Infrared beam, Operating range 2 m, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 800 Hz, IP67, 0.3 m cable + M8 4-pin connector

Specifications

Connection type 0.3 m cable + M8, 4-pin
Sensing range 2 m
Detection method Opposed (Receiver)
Output type PNP
Output status D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -10 … +50 ℃
Anti-ambient light ≤ 5000 lux
Housing material PC + PBT
