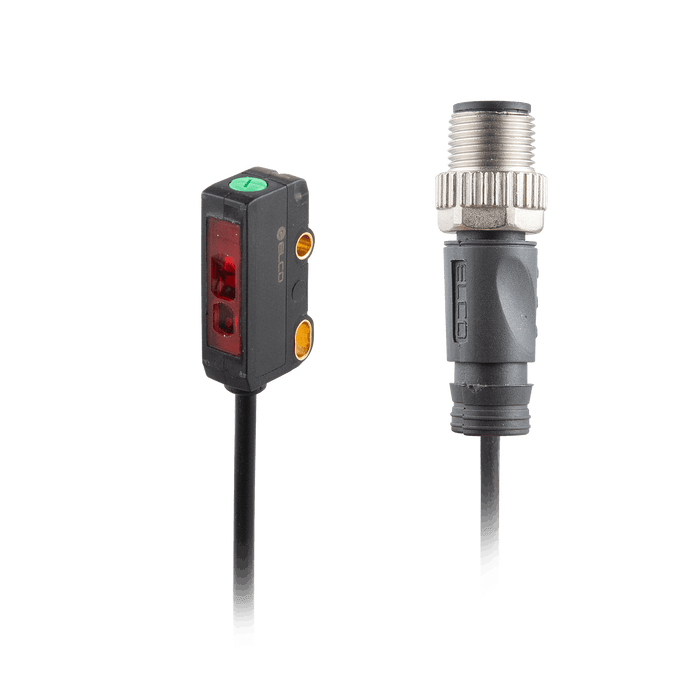

Photoelectric Sensor, OS22-Series, Diffused with BGS, Point light, Operating range 10...120 mm, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, 0.3 m cable + M12 4-pin connector

os22-aks120dp6-03-q12

SKU OS22-AKS120DP6-0.3-Q12
by ELCO Industrial Automation

Photoelectric Sensor, OS22-Series, Diffused with BGS, Point light, Operating range 10...120 mm, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, 0.3 m cable + M12 4-pin connector

$46.74 - $46.74
$46.74
$46.74 - $46.74
$46.74
Availability:
In stock

Photoelectric Sensor, OS22-Series, Diffused with BGS, Point light, Operating range 10...120 mm, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, 0.3 m cable + M12 4-pin connector

Specifications

Output type PNP
Detection method BGS Diffused
Sensing range 10 … 120 mm
Light source Red LED
Spot size 8 mm @ 120 mm
Output status D.O
Switching frequency 200 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -10 … +50 ℃
Anti-ambient light ≤ 10000 lux
