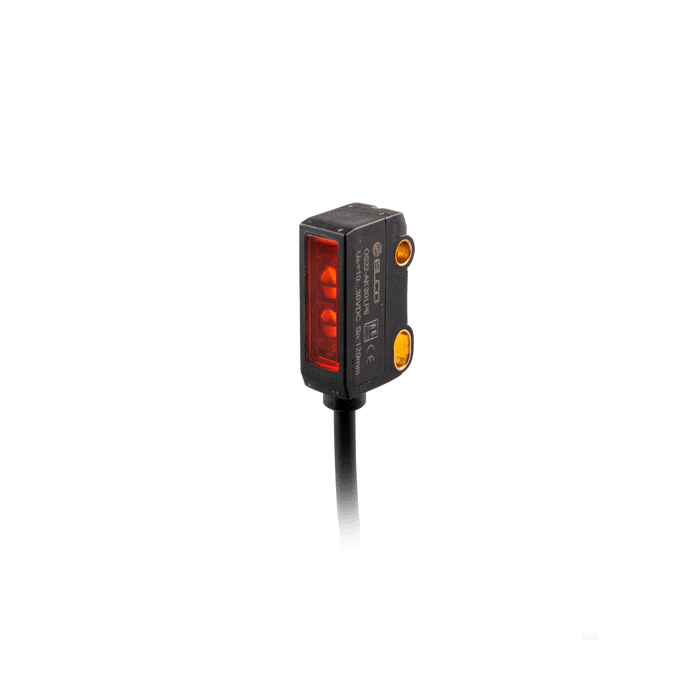

Photoelectric Sensor, OS22-Series, Diffused fixed BGS, Red beam, Operating range 5...30 mm, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

OS22-AK30DP6

SKU OS22-AK30DP6
by ELCO Industrial Automation

Photoelectric Sensor, OS22-Series, Diffused fixed BGS, Red beam, Operating range 5...30 mm, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

$57.76 - $57.76
$57.76
$57.76 - $57.76
$57.76
Availability:
In stock

Photoelectric Sensor, OS22-Series, Diffused fixed BGS, Red beam, Operating range 5...30 mm, PNP, D.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

Specifications

Load current ≤ 100 mA
Connection type 2 m, PVC
Ambient temperature -10 … +50 ℃
Connection Cable
IP rating IP67
Special characteristics Fixed distance BGS
Anti-ambient light ≤ 10000 lux
Housing material PC + PBT
Sensing range 5 … 30 mm
Detection method BGS Diffused
Light source Red LED

No additional information at this time.

Downloads

CE CE_SP_OS22_V1.0_EN.pdf
UL UL_SP_OS22_V1.0_EN.pdf
Datasheet DS_SP_OS22_V1.0_EN.pdf
3D Drawing CAD_SP_OS22_V1.0.stp
Manual UM_SP_OS22-AK30_V1.0_EN&CN.pdf
