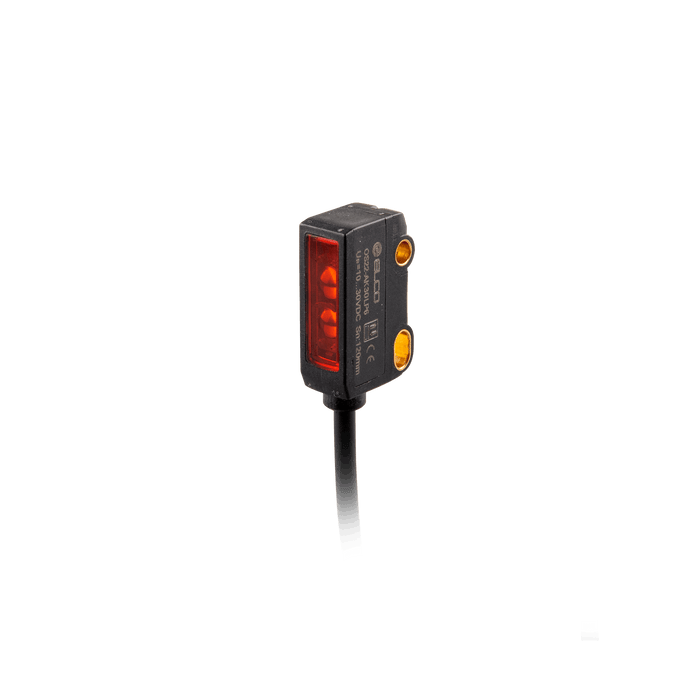

Photoelectric Sensor, OS22-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, NPN, L.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

OS22-AK15LN6

SKU OS22-AK15LN6
by ELCO Industrial Automation

Photoelectric Sensor, OS22-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, NPN, L.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

$57.76 - $57.76
$57.76
$57.76 - $57.76
$57.76
Availability:
In stock

Photoelectric Sensor, OS22-Series, Diffused fixed BGS, Red beam, Operating range 4...15 mm, NPN, L.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Switching frequency 200 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Housing material PC + PBT
Connection Cable
Light source Red LED
Spot size 4 mm @ 15 mm
Output type NPN
Output status L.O
IP rating IP67
Special characteristics Fixed distance BGS

No additional information at this time.

Downloads

CE CE_SP_OS22_V1.0_EN.pdf
UL UL_SP_OS22_V1.0_EN.pdf
Datasheet DS_SP_OS22_V1.0_EN.pdf
3D Drawing CAD_SP_OS22_V1.0.stp
Manual UM_SP_OS22-AK30_V1.0_EN&CN.pdf
