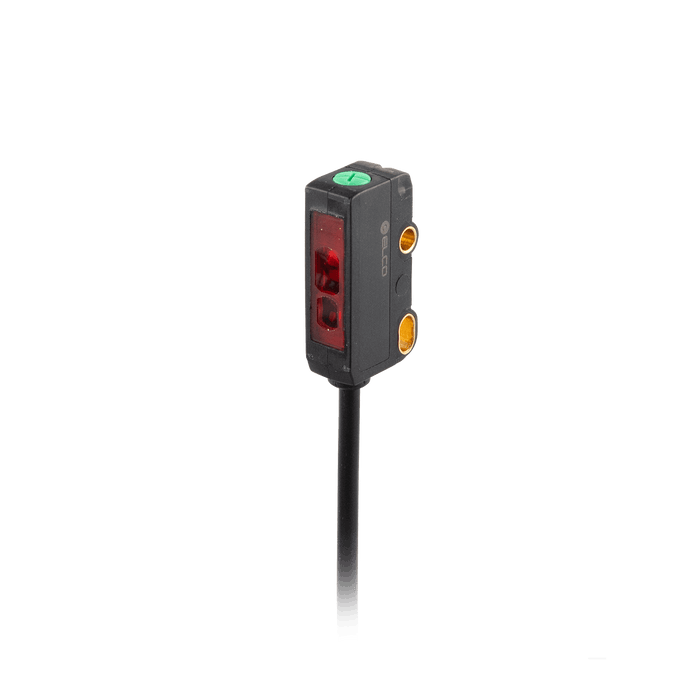

Photoelectric Sensor, OS22-Series, Diffused with BGS, Red beam, Operating range 10...120 mm, PNP, L.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

OS22-AK120LP6

SKU OS22-AK120LP6
by ELCO Industrial Automation

Photoelectric Sensor, OS22-Series, Diffused with BGS, Red beam, Operating range 10...120 mm, PNP, L.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

$82.54 - $82.54
$82.54
$82.54 - $82.54
$82.54
Availability:
In stock

Photoelectric Sensor, OS22-Series, Diffused with BGS, Red beam, Operating range 10...120 mm, PNP, L.O, 10…30V DC, -10…50°C, Switching frequency 200 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Switching frequency 200 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -10 … +50 ℃
Light source Red LED
Output type PNP
Output status L.O
Detection method BGS Diffused
Sensing range 10 … 120 mm
Spot size 8 mm @ 120 mm
IP rating IP67
Connection Cable

No additional information at this time.

Downloads

CE CE_SP_OS22_V1.0_EN.pdf
UL UL_SP_OS22_V1.0_EN.pdf
Datasheet DS_SP_OS22_V1.0_EN.pdf
3D Drawing CAD_SP_OS22-AK120_V1.0.stp
Manual UM_SP_OS22-AK120_V1.0_EN&CN.pdf
