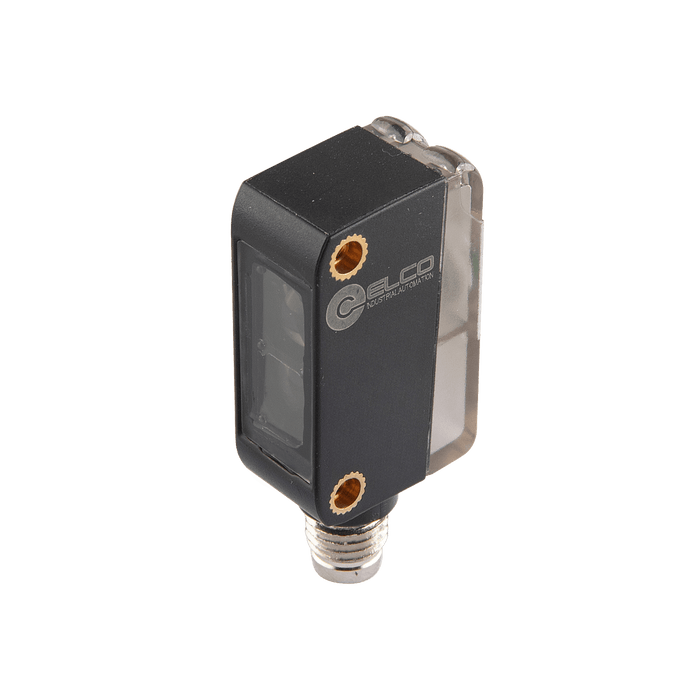

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

OS10S-RPCN6Q8

SKU OS10S-RPCN6Q8
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

$32.42 - $32.42
$32.42
$32.42 - $32.42
$32.42
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

Specifications

Connection type M8, 4-pin
IP rating IP67
Special characteristics Standard reflective board
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -20 … +60 ℃
Connection Connector
Light source Red LED
Spot size 2 cm @ 1 m
Output type NPN
Output status L.O / D.O

No additional information at this time.

Downloads

CE CE_SP_OS10S_V1.0_EN.pdf
UL UL_SP_OS10S_V1.0_EN.pdf
Datasheet ELCO_OS10S_DataSheet_CN.pdf
Datasheet DS_SP_OS10S-R_V1.0_EN.pdf
3D Drawing CAD_SP_OS10S-E-RP-Q8_V1.0.stp
Manual UM_SP_OS10S-RP-Q8_V1.0_EN&CN.pdf
