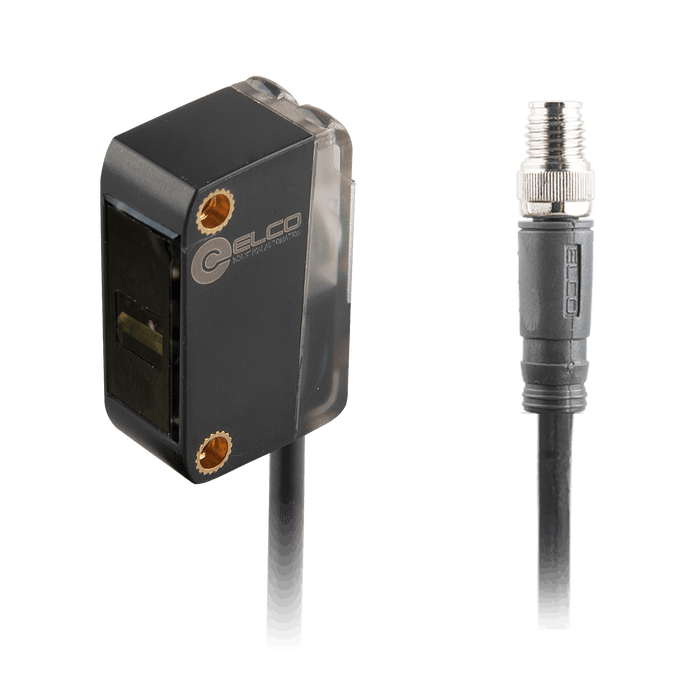

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 2 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

os10s-rpcn6-03-q83nd

SKU OS10S-RPCN6-0.3-Q8.3/ND
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 2 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

$46.28 - $46.28
$46.28
$46.28 - $46.28
$46.28
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 2 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

Specifications

Switching frequency 800 Hz
Detection method Polarized Retro-reflective
Sensing range 2 m
Light source Red LED
Spot size 3 × 20 mm @ 100 mm
Output type NPN
Output status L.O / D.O
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -20 … +60 ℃
Anti-ambient light ≤ 5000 lux
