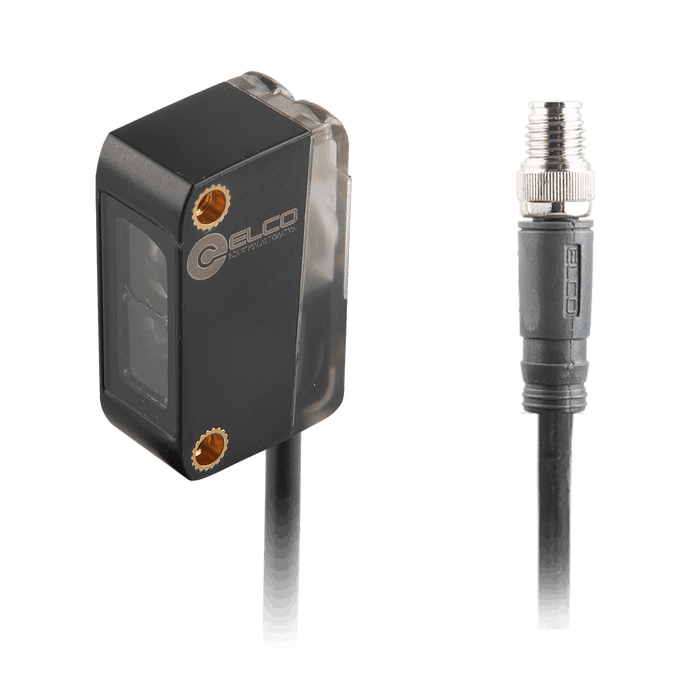

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

os10s-rpcn6-03-q83ap

SKU OS10S-RPCN6-0.3-Q8.3/AP
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

$46.28 - $46.28
$46.28
$46.28 - $46.28
$46.28
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

Specifications

Detection method Polarized Retro-reflective
Sensing range 3 m
Light source Red LED
Spot size 2 cm @ 1 m
Output type NPN
Output status L.O / D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -20 … +60 ℃
Anti-ambient light ≤ 5000 lux
