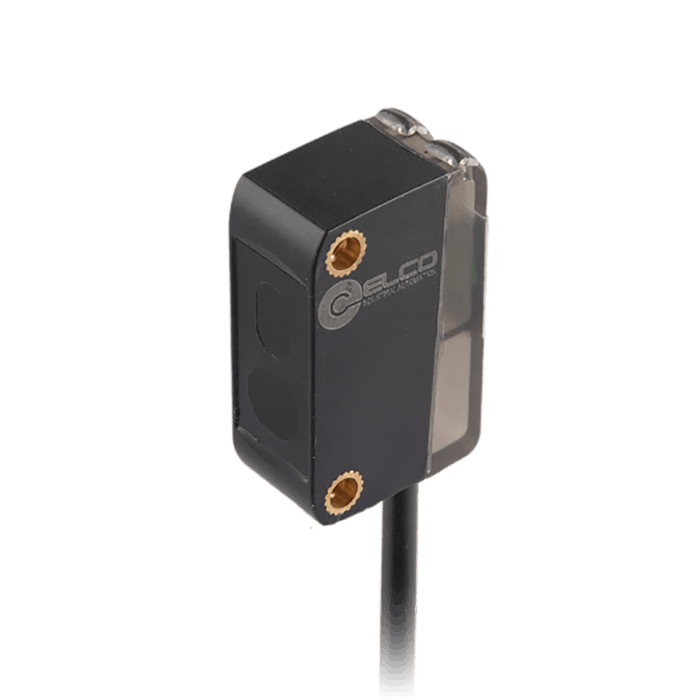

Photoelectric Sensor, OS10S-Series, Diffused, Infrared laser, Operating range 50...4000 mm, UART, 5V DC, -20…60°C, Switching frequency 80 Hz, IP67, Cable 2 m

os10s-k4000ur

SKU OS10S-K4000/UR
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused, Infrared laser, Operating range 50...4000 mm, UART, 5V DC, -20…60°C, Switching frequency 80 Hz, IP67, Cable 2 m

$120.43 - $120.43
$120.43
$120.43 - $120.43
$120.43
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused, Infrared laser, Operating range 50...4000 mm, UART, 5V DC, -20…60°C, Switching frequency 80 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Ambient temperature 0 … +55 ℃
Anti-ambient light ≤ 10000 lux
Housing material PC + PBT
IP rating IP67
Detection method TOF BGS Diffused
Sensing range 50 … 4000 mm
Light source Infrared laser / Class 1
Spot size 14 × 7 cm @ 4 m
Output type UART
Supply voltage 5 V DC

No additional information at this time.
