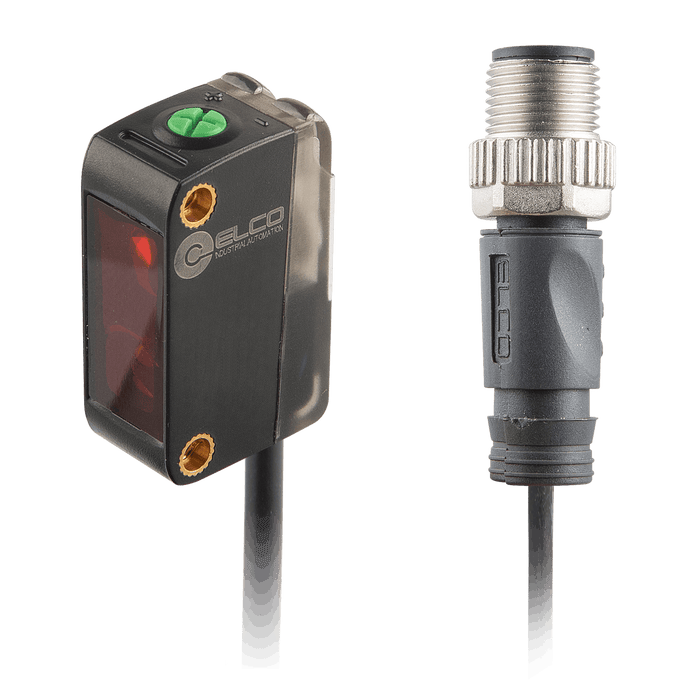

Photoelectric Sensor, OS10S-Series, Diffused, Red beam, Operating range 20...1000 mm, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 200 Hz, IP67, 0.3 m + M12 4-pin connector

os10s-k1000cp6-03-q12

SKU OS10S-K1000CP6-0.3-Q12
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused, Red beam, Operating range 20...1000 mm, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 200 Hz, IP67, 0.3 m + M12 4-pin connector

$43.54 - $43.54
$43.54
$43.54 - $43.54
$43.54
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused, Red beam, Operating range 20...1000 mm, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 200 Hz, IP67, 0.3 m + M12 4-pin connector

Specifications

Connection M12 Pigtail
Detection method Diffused
Output type PNP
Output status L.O / D.O
Switching frequency 200 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -20 … +60 ℃
IP rating IP67
Sensing range 1000 mm
Light source Red LED
Spot size 3 cm @ 1 m
