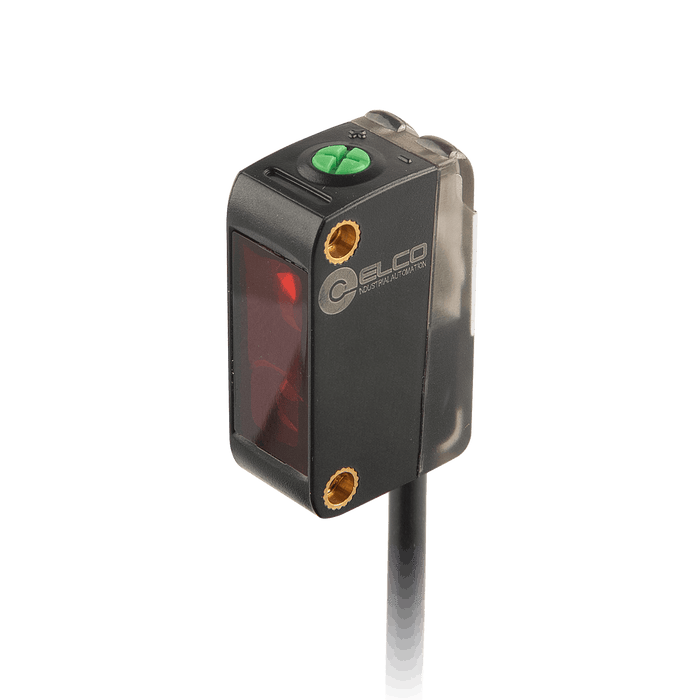

Photoelectric Sensor, OS10S-Series, Diffused, Red beam, Operating range 20...1000 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 200 Hz, IP67, Cable 2 m

OS10S-K1000CN6

SKU OS10S-K1000CN6
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused, Red beam, Operating range 20...1000 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 200 Hz, IP67, Cable 2 m

$34.74 - $34.74
$34.74
$34.74 - $34.74
$34.74
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused, Red beam, Operating range 20...1000 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 200 Hz, IP67, Cable 2 m

Specifications

Detection method Diffused
Sensing range 1000 mm
Light source Red LED
Spot size 3 cm @ 1 m
Output type NPN
Connection type 2 m, PVC
Switching frequency 200 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Output status L.O / D.O
Ambient temperature -20 … +60 ℃
Anti-ambient light ≤ 5000 lu

No additional information at this time.

Downloads

CE CE_SP_OS10S_V1.0_EN.pdf
UL UL_SP_OS10S_V1.0_EN.pdf
Datasheet ELCO_OS10S_DataSheet_CN.pdf
Datasheet DS_SP_OS10S-R_V1.0_EN.pdf
3D Drawing CAD_SP_OS10S-BGS_V1.0.stp
Manual UM_SP_OS10S-K1000-Q8-Q8.3_V1.0_EN&CN.pdf
