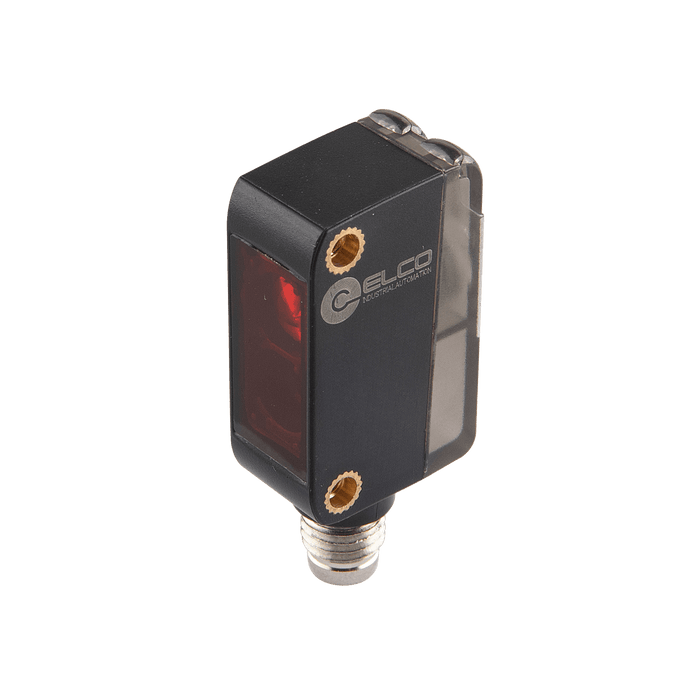

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

os10s-elcp6q8ap

SKU OS10S-ELCP6Q8/AP
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

$37.05 - $37.05
$37.05
$37.05 - $37.05
$37.05
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

Specifications

Connection type M8, 4-pin
Housing material PC + PBT
Connection Connector
IP rating IP67
Detection method Opposed (Receiver)
Sensing range 30 m
Light source Red laser / Class 1
Output type PNP
Output status L.O / D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
