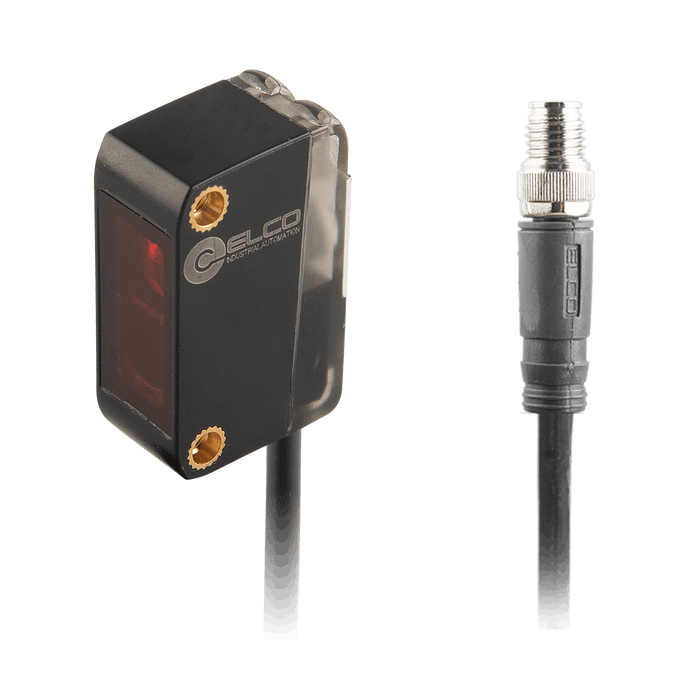

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

os10s-elcn6-03-q83ap

SKU OS10S-ELCN6-0.3-Q8.3/AP
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

$41.22 - $41.22
$41.22
$41.22 - $41.22
$41.22
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 3-pin connector

Specifications

Connection M8 Pigtail
Connection type 0.3 m cable + M8, 3-pin
IP rating IP67
Special characteristics Sensitivity adjustable
Sensing range 30 m
Light source Red laser / Class 1
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Anti-ambient light ≤ 10000 lux

No additional information at this time.
