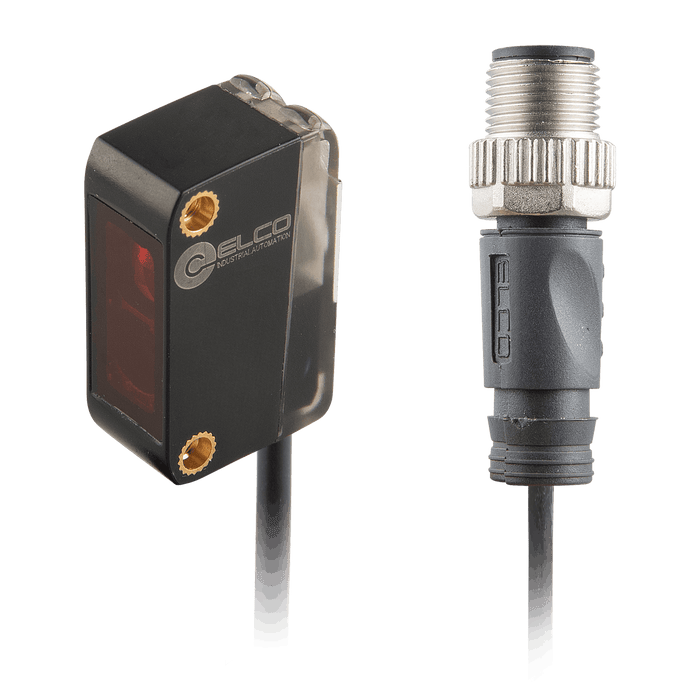

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M12 4-pin connector

os10s-elcn6-03-q12ap

SKU OS10S-ELCN6-0.3-Q12/AP
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M12 4-pin connector

$41.22 - $41.22
$41.22
$41.22 - $41.22
$41.22
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, laser beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M12 4-pin connector

Specifications

Detection method Opposed (Receiver)
Light source Red laser / Class 1
Connection type 0.3 m cable + M12, 4-pin
IP rating IP67
Sensing range 30 m
Output type NPN
Output status L.O / D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -25 … +55 ℃
