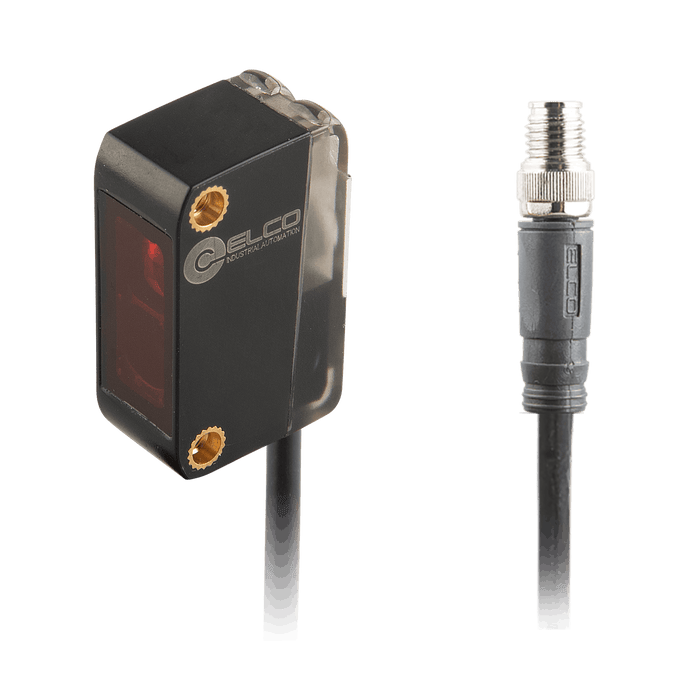

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, Red beam, Operating range 10 m, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 4-pin connector

os10s-ecp6-03-q8ap

SKU OS10S-ECP6-0.3-Q8/AP
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, Red beam, Operating range 10 m, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 4-pin connector

$43.96 - $43.96
$43.96
$43.96 - $43.96
$43.96
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Opposed, Receiver, Red beam, Operating range 10 m, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 800 Hz, IP67, 0.3 m + M8 4-pin connector

Specifications

IP rating IP67
Detection method Opposed (Receiver)
Sensing range 10 m
Output type PNP
Output status L.O / D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -20 … +60 ℃
Anti-ambient light ≤ 5000 lux
Housing material PC + PBT
Connection M8 Pig

No additional information at this time.
