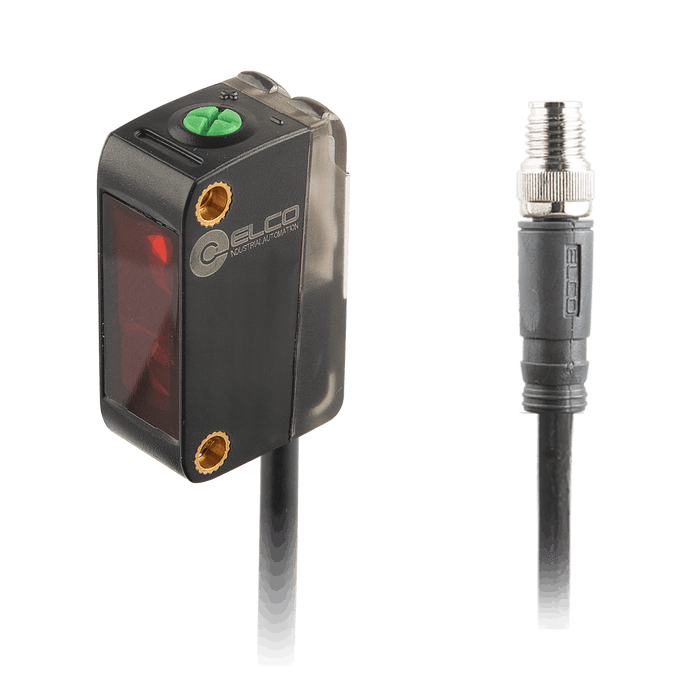

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Laser beam, Operating range 6...350 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 3-pin connector

os10s-akl350cn6-03-q83

SKU OS10S-AKL350CN6-0.3-Q8.3
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Laser beam, Operating range 6...350 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 3-pin connector

$81.98 - $81.98
$81.98
$81.98 - $81.98
$81.98
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Laser beam, Operating range 6...350 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 3-pin connector

Specifications

Detection method BGS Diffused
Spot size 2 mm @ 350 mm
Output type NPN
Supply voltage 10 ... 30 V DC
Connection M8 Pigtail
Sensing range 6 … 350 mm
Light source Red laser / Class 1
Output status L.O / D.O
Switching frequency 300 Hz
Load current ≤ 100 mA
Ambient temperature -25 … +55 ℃
