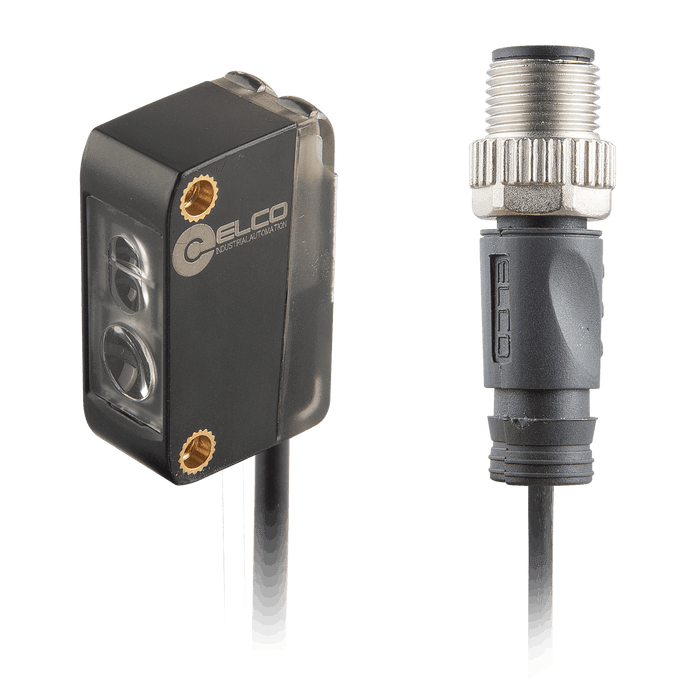

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...4000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, 0.3 m + M12 4-pin connector

os10s-ak4000cn6-03-q12

SKU OS10S-AK4000CN6-0.3-Q12
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...4000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, 0.3 m + M12 4-pin connector

$133.86 - $133.86
$133.86
$133.86 - $133.86
$133.86
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...4000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, 0.3 m + M12 4-pin connector

Specifications

Sensing range 50 … 4000 mm
Light source Infrared laser + Red LED indication / Class 1
Spot size 14 × 7 cm @ 4 m
Output type NPN
Output status L.O / D.O
Switching frequency 30 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature 0 … +55 ℃
Housing material PC + PBT
