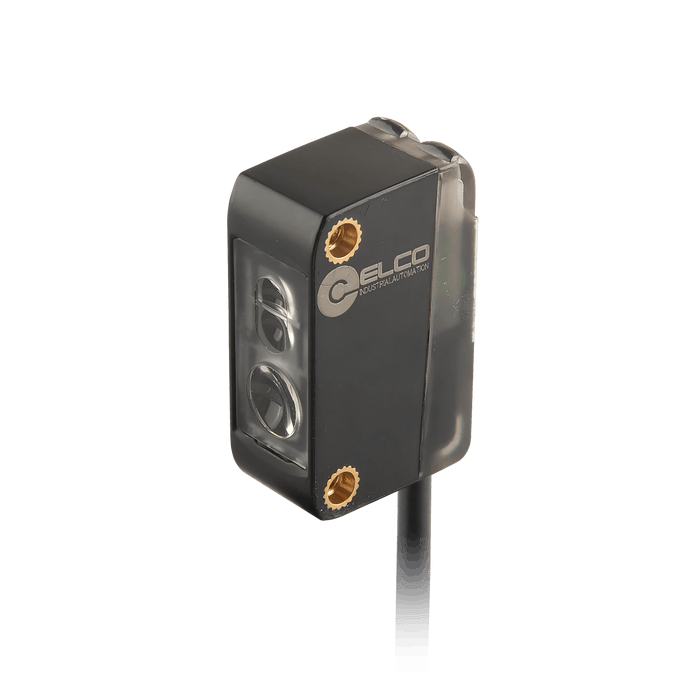

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...4000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, Cable 2 m

OS10S-AK4000CN6

SKU OS10S-AK4000CN6
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...4000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, Cable 2 m

$125.06 - $125.06
$125.06
$125.06 - $125.06
$125.06
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...4000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Ambient temperature 0 … +55 ℃
Detection method TOF BGS Diffused
Sensing range 50 … 4000 mm
Light source Infrared laser + Red LED indication / Class 1
Spot size 14 × 7 cm @ 4 m
Output type NPN
Output status L.O / D.O
Switching frequency 30 Hz
Supply voltage 10 ... 30 V DC

No additional information at this time.

Downloads

CE CE_SP_OS10S_V1.0_EN.pdf
UL UL_SP_OS10S_V1.0_EN.pdf
Datasheet ELCO_OS10S_DataSheet_CN.pdf
Datasheet DS_SP_OS10S-TOF_V1.0_EN.pdf
3D Drawing CAD_SP_OS10S-TOF_V1.0.stp
Manual UM_SP_OS10S-AK4000_V1.0_EN&CN.pdf
