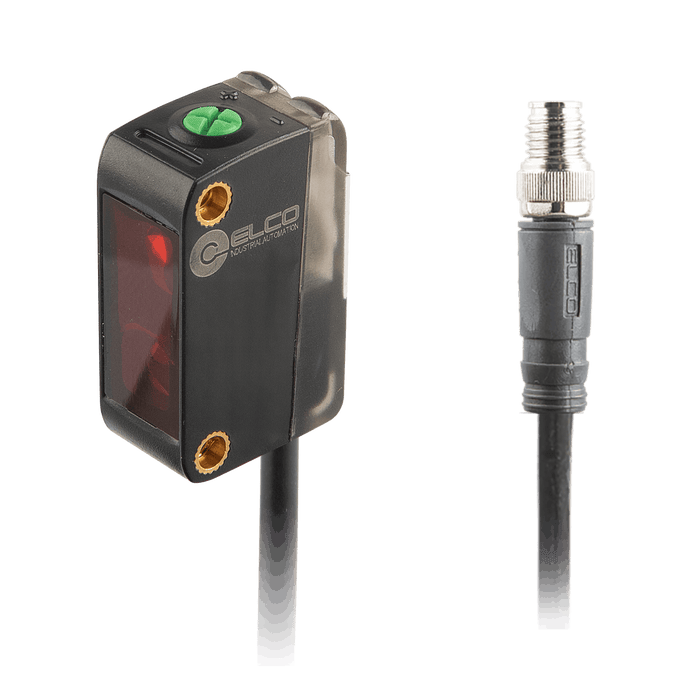

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...350 mm, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 3-pin connector

os10s-ak350cp6-03-q83

SKU OS10S-AK350CP6-0.3-Q8.3
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...350 mm, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 3-pin connector

$54.15 - $54.15
$54.15
$54.15 - $54.15
$54.15
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...350 mm, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 3-pin connector

Specifications

Detection method BGS Diffused
Sensing range 6 … 350 mm
Light source Red LED
Spot size 7 mm @ 350 mm
Output type PNP
Output status L.O / D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -20 … +60 ℃
Anti-ambient light ≤ 10000 lux
