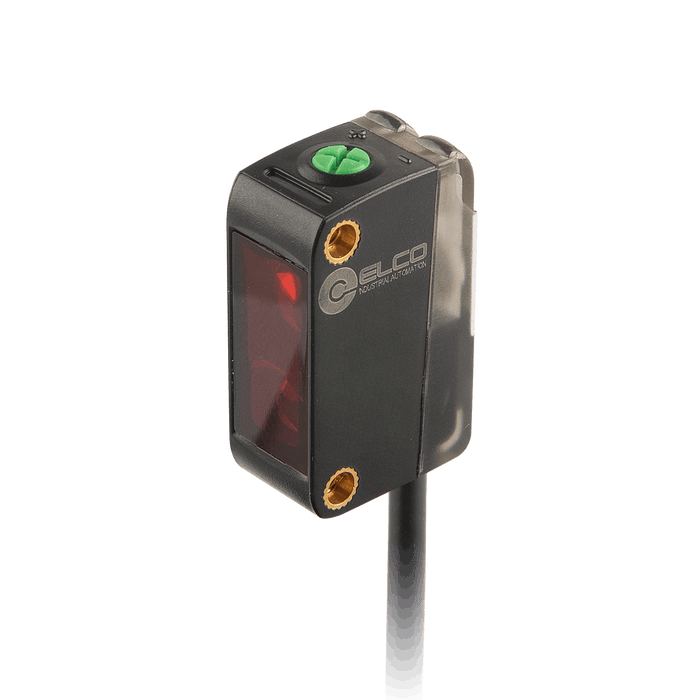

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...350 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, Cable 2 m

OS10S-AK350CN6

SKU OS10S-AK350CN6
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...350 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, Cable 2 m

$45.39 - $45.39
$45.39
$45.39 - $45.39
$45.39
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...350 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, Cable 2 m

Specifications

Sensing range 6 … 350 mm
Switching frequency 400 Hz
Output type NPN
Output status L.O / D.O
Supply voltage 10 ... 30 V DC
Light source Red LED
Spot size 7 mm @ 350mm
Connection type 2 m, PVC
IP rating IP67
Connection Cable
Load current ≤ 100 mA
Anti-ambient light ≤ 10000 lux

No additional information at this time.

Downloads

CE CE_SP_OS10S_V1.0_EN.pdf
UL UL_SP_OS10S_V1.0_EN.pdf
Datasheet ELCO_OS10S_DataSheet_CN.pdf
Datasheet DS_SP_OS10S-R_V1.0_EN.pdf
3D Drawing CAD_SP_OS10S-BGS_V1.0.stp
Manual UM_SP_OS10S-AK350-Q8-Q8.3_V1.0_EN&CN.pdf
