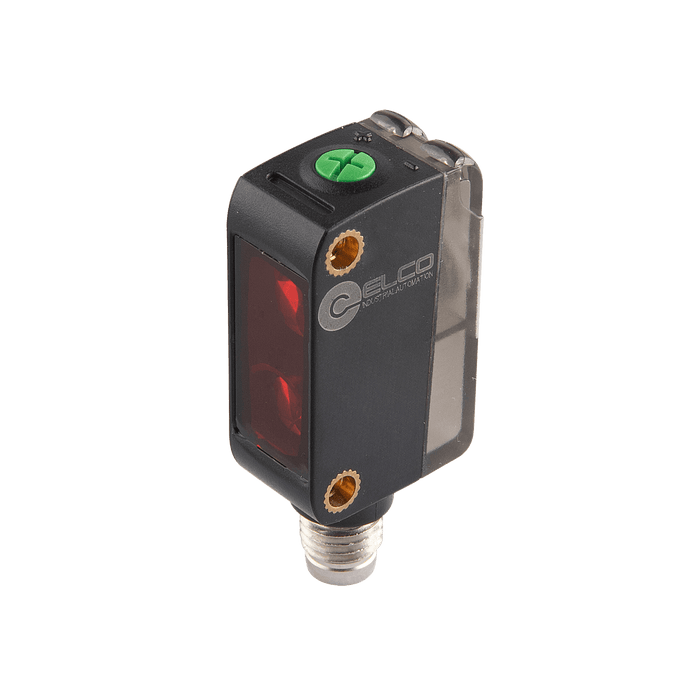

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, M8 3-pin connector

os10s-ak150cn6q83

SKU OS10S-AK150CN6Q8.3
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, M8 3-pin connector

$44.47 - $44.47
$44.47
$44.47 - $44.47
$44.47
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, M8 3-pin connector

Specifications

Detection method BGS Diffused
Connection Connector
Connection type M8, 3-pin
IP rating IP67
Sensing range 6 … 150 mm
Light source Red LED
Spot size 6 mm @ 150mm
Output type NPN
Output status L.O / D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA

No additional information at this time.
