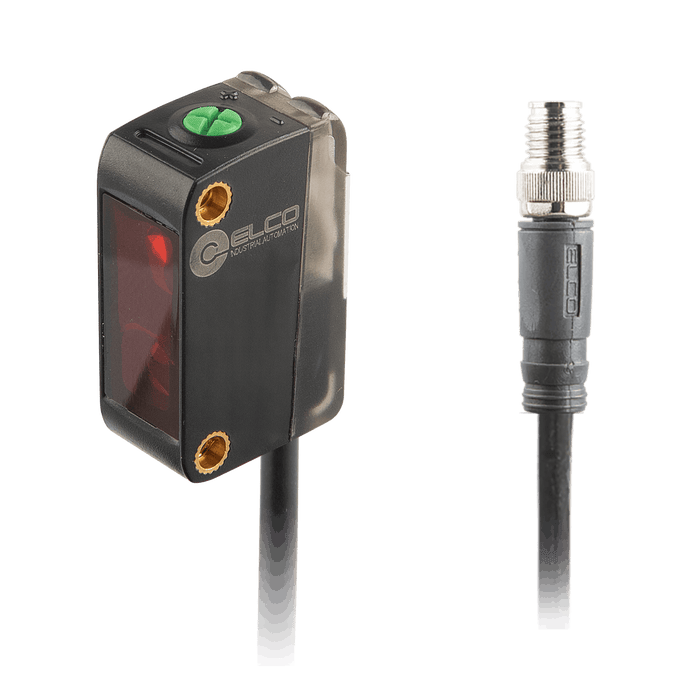

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 4-pin connector

os10s-ak150cn6-03-q8

SKU OS10S-AK150CN6-0.3-Q8
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 4-pin connector

$54.15 - $54.15
$54.15
$54.15 - $54.15
$54.15
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Red beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 400 Hz, IP67, 0.3 m + M8 4-pin connector

Specifications

Detection method BGS Diffused
Sensing range 6 … 150 mm
Light source Red LED
Spot size 6 mm @ 150 mm
Output type NPN
Output status L.O / D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -20 … +60 ℃
Anti-ambient light ≤ 10000 lux
