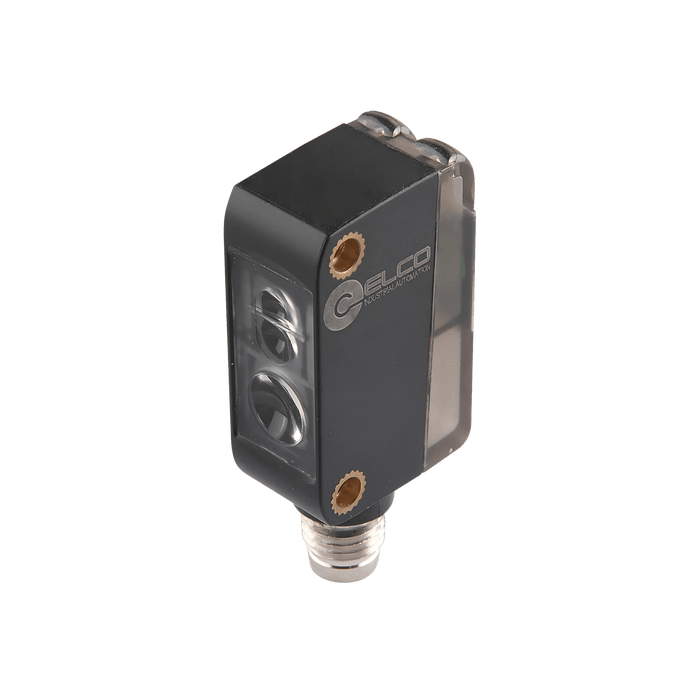

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...1000 mm, Teach Button, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, M8 3-pin connector

os10s-ak1000cp6q83

SKU OS10S-AK1000CP6Q8.3
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...1000 mm, Teach Button, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, M8 3-pin connector

$89.39 - $89.39
$89.39
$89.39 - $89.39
$89.39
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...1000 mm, Teach Button, PNP, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, M8 3-pin connector

Specifications

Detection method TOF BGS Diffused
Sensing range 50 … 1000 mm
Light source Infrared laser + Red LED indication / Class 1
Spot size 3 cm @ 1 m
Output type PNP
Output status L.O / D.O
Switching frequency 30 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature 0 … +55 ℃

No additional information at this time.
