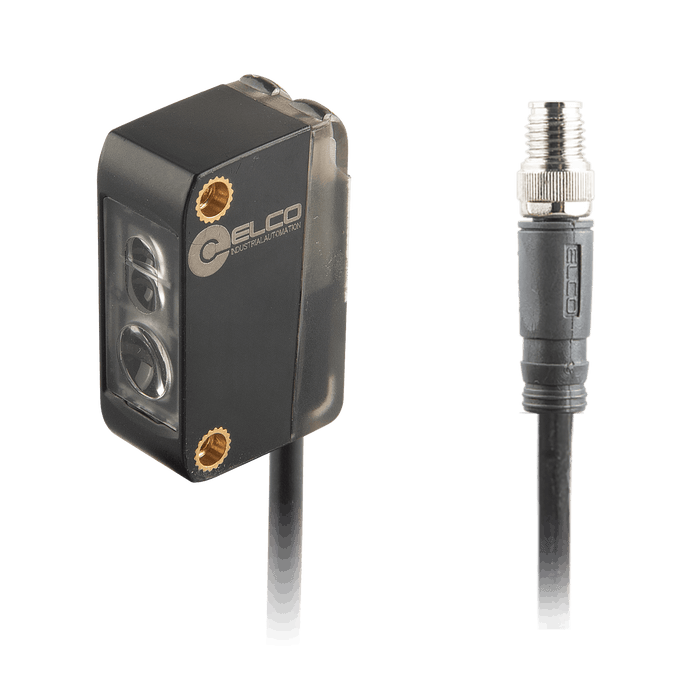

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...1000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, 0.3 m + M8 3-pin connector

os10s-ak1000cn6-03-q83

SKU OS10S-AK1000CN6-0.3-Q8.3
by ELCO Industrial Automation

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...1000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, 0.3 m + M8 3-pin connector

$99.12 - $99.12
$99.12
$99.12 - $99.12
$99.12
Availability:
In stock

Photoelectric Sensor, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50...1000 mm, Teach Button, NPN, L.O / D.O, 10…30V DC, -20…60°C, Switching frequency 30 Hz, IP67, 0.3 m + M8 3-pin connector

Specifications

Sensing range 50 … 1000 mm
Light source Infrared laser + Red LED indication / Class 1
Spot size 3 cm @ 1 m
Output type NPN
Output status L.O / D.O
Load current ≤ 100 mA
Connection M8 Pigtail
Connection type 0.3 m cable + M8, 3-pin
IP rating IP67
Detection method TOF BGS Diffused
