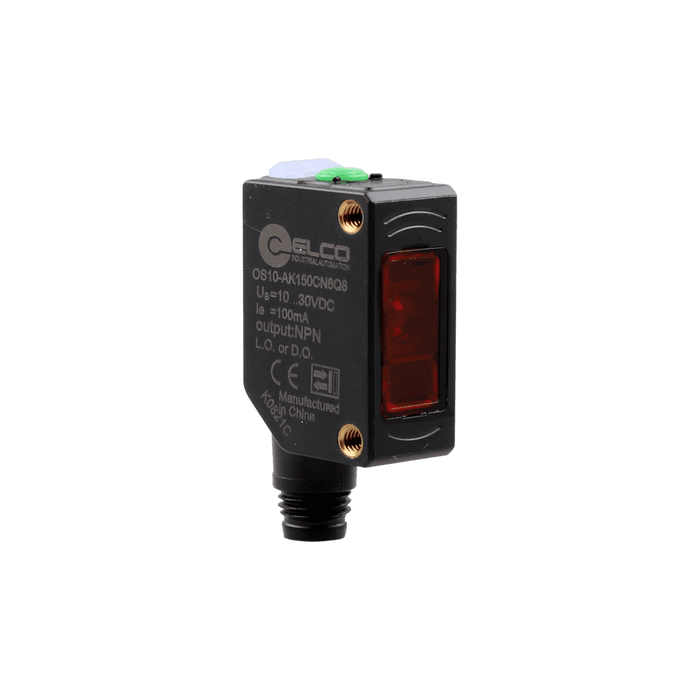

Photoelectric Sensor, OS10-Series, Opposed, Receiver, Infrared beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

OS10-ECN6Q8

SKU OS10-ECN6Q8
by ELCO Industrial Automation

Photoelectric Sensor, OS10-Series, Opposed, Receiver, Infrared beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

$31.96 - $31.96
$31.96
$31.96 - $31.96
$31.96
Availability:
In stock

Photoelectric Sensor, OS10-Series, Opposed, Receiver, Infrared beam, Operating range 30 m, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M8 4-pin connector

Specifications

Connection type M8, 4-pin
Output status L.O / D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Anti-ambient light ≤ 5000 lux
Connection Connector
Sensing range 30 m
Output type NPN
IP rating IP67
Housing material PC + PBT
Ambient temperature -25 … +55 ℃

No additional information at this time.

Downloads

CE ELCO_OS10_CE.pdf
Datasheet ELCO_OS10_DataSheet_EN.pdf
Datasheet ELCO_OS10_DataSheet_CN.pdf
3D Drawing ELCO_OS10-ECN6Q8.stp
Manual ELCO_OS10-ECN6Q8_Manual.pdf
