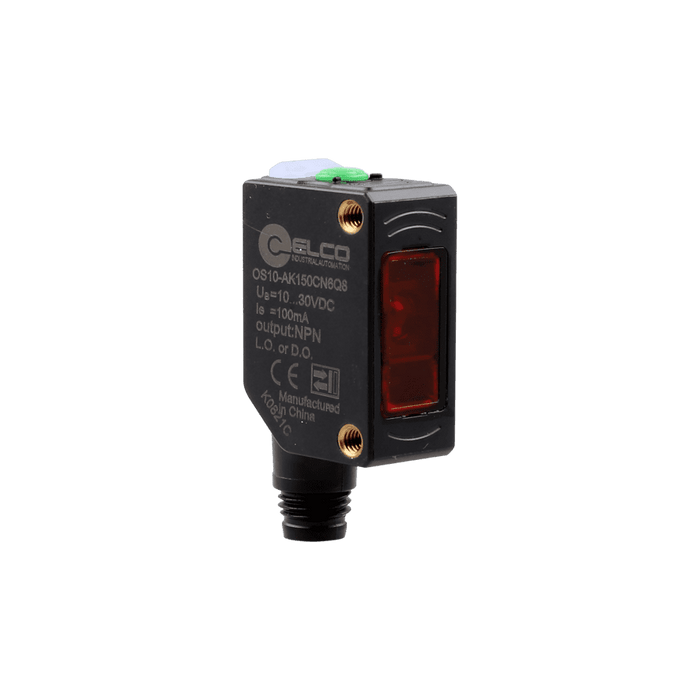

Photoelectric Sensor, OS10-Series, Diffused with BGS, Laser beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M8 4-pin connector

OS10-AKL150CN6Q8

SKU OS10-AKL150CN6Q8
by ELCO Industrial Automation

Photoelectric Sensor, OS10-Series, Diffused with BGS, Laser beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M8 4-pin connector

$71.15 - $71.15
$71.15
$71.15 - $71.15
$71.15
Availability:
In stock

Photoelectric Sensor, OS10-Series, Diffused with BGS, Laser beam, Operating range 6...150 mm, NPN, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M8 4-pin connector

Specifications

Connection type M8, 4-pin
Load current ≤ 100 mA
Ambient temperature -25 … +55 ℃
Anti-ambient light ≤ 5000 lux
Detection method BGS Diffused
Sensing range 6 … 150 mm
Light source Red laser / Class 1
Spot size 1 mm @ 100 mm
Output type NPN
Output status L.O / D.O
Switching frequency 400 Hz

No additional information at this time.

Downloads

CE ELCO_OS10_CE.pdf
Datasheet ELCO_OS10_DataSheet_EN.pdf
Datasheet ELCO_OS10_DataSheet_CN.pdf
3D Drawing ELCO_OS10-AKL150CN6Q8.stp
Manual ELCO_OS10-AKL150CN6Q8_Manual.pdf
