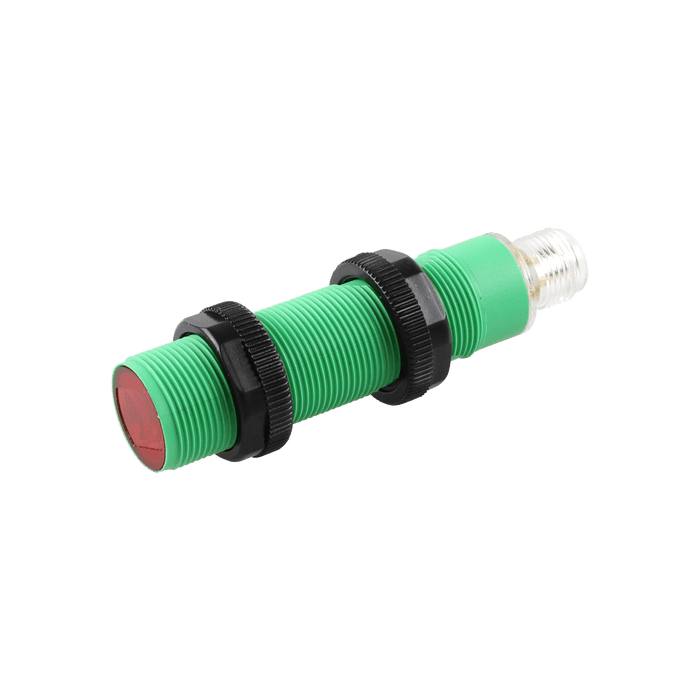

Photoelectric Sensor, OP18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 50 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OP18-TK50VN6Q

SKU OP18-TK50VN6Q
by ELCO Industrial Automation

Photoelectric Sensor, OP18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 50 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$36.13 - $36.13
$36.13
$36.13 - $36.13
$36.13
Availability:
In stock

Photoelectric Sensor, OP18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 50 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Output status L.O + D.O
Switching frequency 100 Hz
Detection method Diffused
Light source Infrared LED
Spot size 10 mm @ 50 mm
Output type NPN
Sensing range 50 mm
Housing material PC + PBT
IP rating IP67
Ambient temperature -25 … +65 ℃
Supply voltage 10 ... 30 V DC

No additional information at this time.

Downloads

CE CE_SP_OP18_V1.0_EN.pdf
Datasheet ELCO_OP18_DataSheet_CN.pdf
Datasheet DS_SP_OP18-TK_V1.0_EN.pdf
3D Drawing CAD_SP_OP18-AP-Q12_V1.0.stp
Manual UM_SP_OP18-TK50_V1.0_EN&CN.pdf
