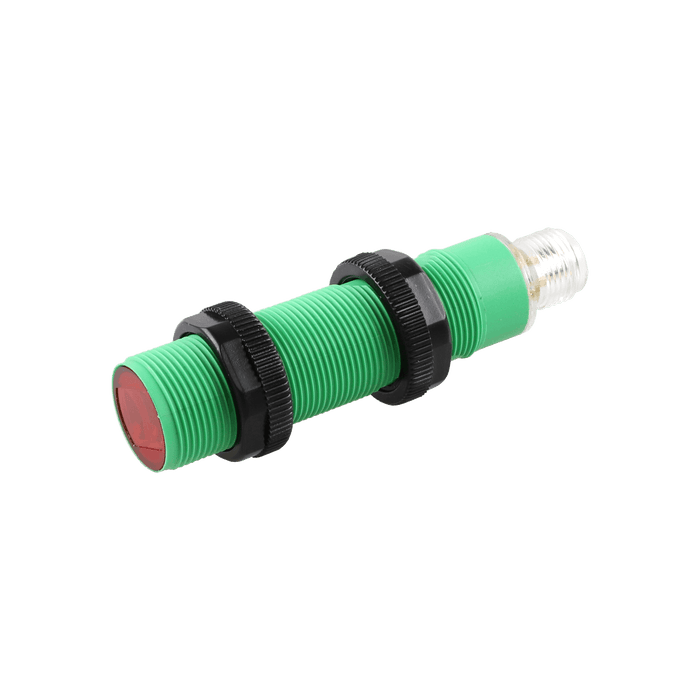

Photoelectric Sensor, OP18-Series, Opposed, Emitter, Infrared beam, Operating range 10 m, 10…30V DC, -25…65°C, IP67, M12 4-pin connector

Specifications

Detection method Opposed (Emitter)
Sensing range 10 m
Light source Infrared LED
Spot size 90 mm @ 1 m
Supply voltage 10 ... 30 V DC
Connection type M12, 4-pin
Ambient temperature -25 … +65 ℃
IP rating IP67
Connection Connector
Housing material PC + PBT
Anti-ambient light ≤ 5000 lux

No additional information at this time.

Downloads

CE CE_SP_OP18_V1.0_EN.pdf
Datasheet ELCO_OP18_DataSheet_CN.pdf
Datasheet DS_SP_OP18_V1.0_EN.pdf
3D Drawing CAD_SP_OP18-Q12_V1.0.stp
Manual UM_SP_OP18-SE_V1.0_EN&CN.pdf
