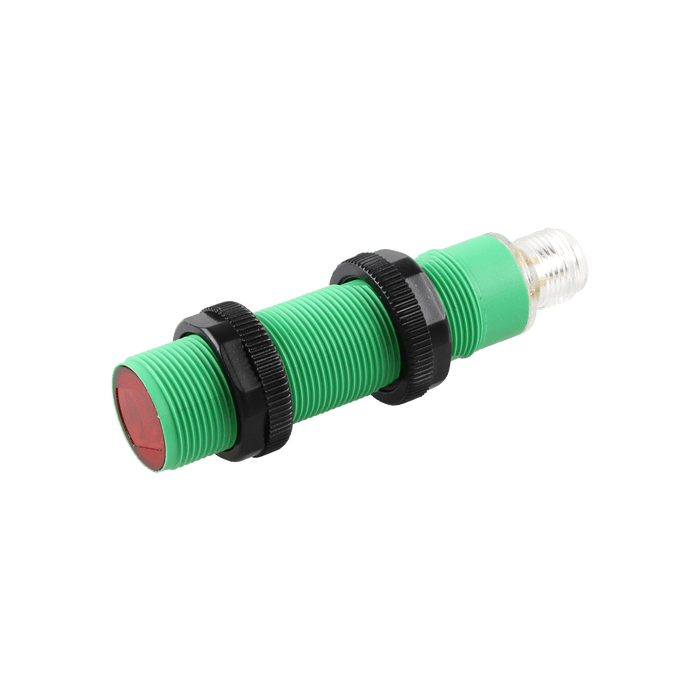

Photoelectric Sensor, OP18-Series, Retro-reflective, Infrared beam, Operating range 3 m, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OP18-RVP6Q

SKU OP18-RVP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OP18-Series, Retro-reflective, Infrared beam, Operating range 3 m, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$31.50 - $31.50
$31.50
$31.50 - $31.50
$31.50
Availability:
In stock

Photoelectric Sensor, OP18-Series, Retro-reflective, Infrared beam, Operating range 3 m, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Spot size 15 mm @ 1 m
Detection method Retro-reflective
Sensing range 3 m
Light source Infrared LED
Housing material PC + PBT
Connection Connector
Output type PNP
Output status L.O + D.O
Switching frequency 100 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -25

No additional information at this time.

Downloads

CE CE_SP_OP18_V1.0_EN.pdf
Datasheet ELCO_OP18_DataSheet_CN.pdf
Datasheet DS_SP_OP18_V1.0_EN.pdf
3D Drawing CAD_SP_OP18-AP-Q12_V1.0.stp
Manual UM_SP_OP18-R_V1.0_EN&CN.pdf
