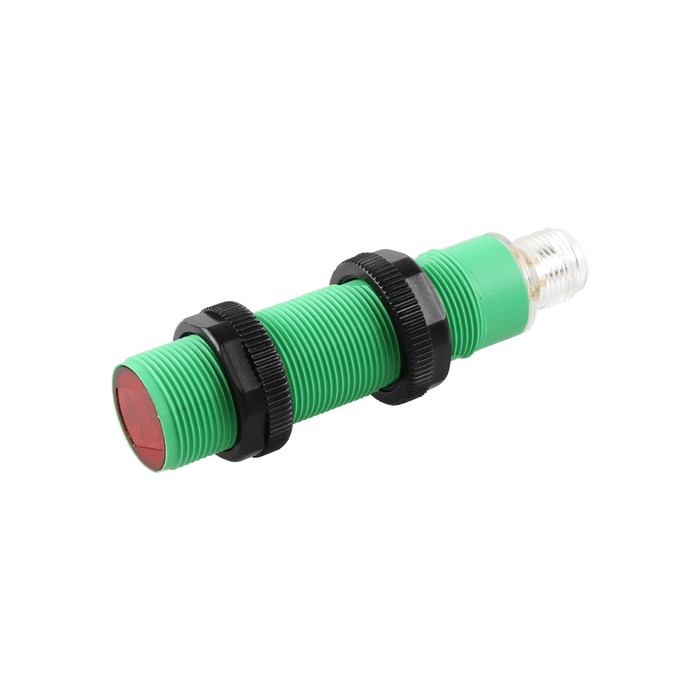

Photoelectric Sensor, OP18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OP18-K200VP6Q

SKU OP18-K200VP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OP18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$31.50 - $31.50
$31.50
$31.50 - $31.50
$31.50
Availability:
In stock

Photoelectric Sensor, OP18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Detection method Diffused
Anti-ambient light ≤ 5000 lux
Ambient temperature -25 … +65 ℃
IP rating IP67
Sensing range 200 mm
Light source Infrared LED
Spot size 50 mm @ 200 mm
Output type PNP
Switching frequency 100 Hz
Output status L.O + D.O
Supply voltage 10 ... 30

No additional information at this time.

Downloads

CE CE_SP_OP18_V1.0_EN.pdf
Datasheet ELCO_OP18_DataSheet_CN.pdf
Datasheet DS_SP_OP18_V1.0_EN.pdf
3D Drawing CAD_SP_OP18-AP-Q12_V1.0.stp
Manual UM_SP_OP18-K200_V1.0_EN&CN.pdf
