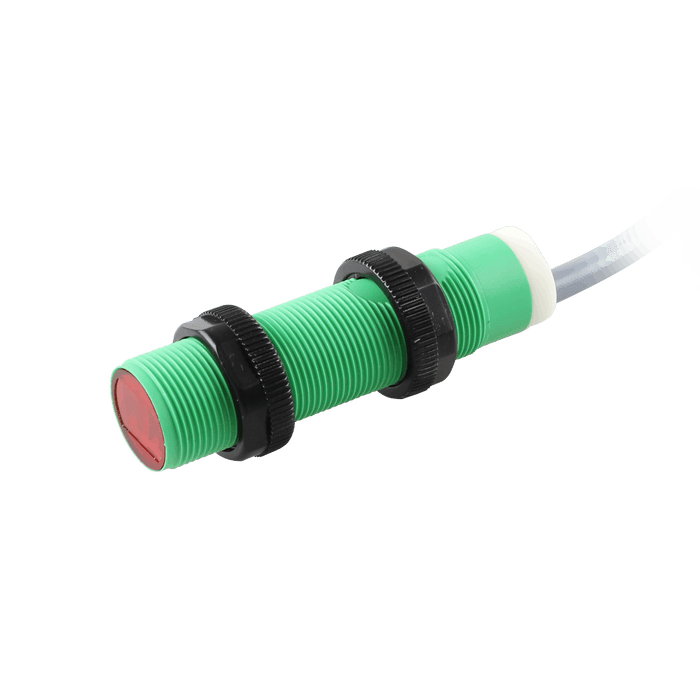

Photoelectric Sensor, OP18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, Cable 2 m

OP18-K200VP6

SKU OP18-K200VP6
by ELCO Industrial Automation

Photoelectric Sensor, OP18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, Cable 2 m

$32.42 - $32.42
$32.42
$32.42 - $32.42
$32.42
Availability:
In stock

Photoelectric Sensor, OP18-Series, Diffused, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Output status L.O + D.O
Switching frequency 100 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -25 … +65 ℃
Anti-ambient light ≤ 5000 lux
Connection Cable
IP rating IP67
Detection method Diffused
Sensing range 200 mm
Light source Infrared LED

No additional information at this time.

Downloads

CE CE_SP_OP18_V1.0_EN.pdf
Datasheet ELCO_OP18_DataSheet_CN.pdf
Datasheet DS_SP_OP18_V1.0_EN.pdf
3D Drawing CAD_SP_OP18-AP_V1.0.stp
Manual UM_SP_OP18-K200_V1.0_EN&CN.pdf
