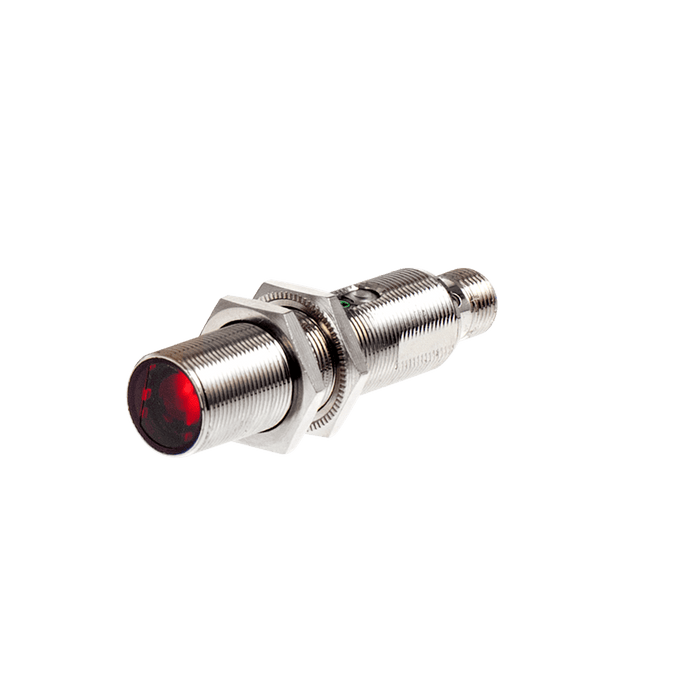

Photoelectric Sensor, OM18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OM18-TK200VP6Q

SKU OM18-TK200VP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OM18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$52.34 - $52.34
$52.34
$52.34 - $52.34
$52.34
Availability:
In stock

Photoelectric Sensor, OM18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 200 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection Connector
Connection type M12, 4-pin
IP rating IP67
Special characteristics Vitreous body detect
Detection method Diffused
Sensing range 200 mm
Light source Infrared LED
Spot size 50 mm @ 200 mm
Output type PNP
Output status L.O + D.O
Supply voltage 10 ... 30 V DC

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18-TK_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-TK200_V1.0_EN&CN.pdf
