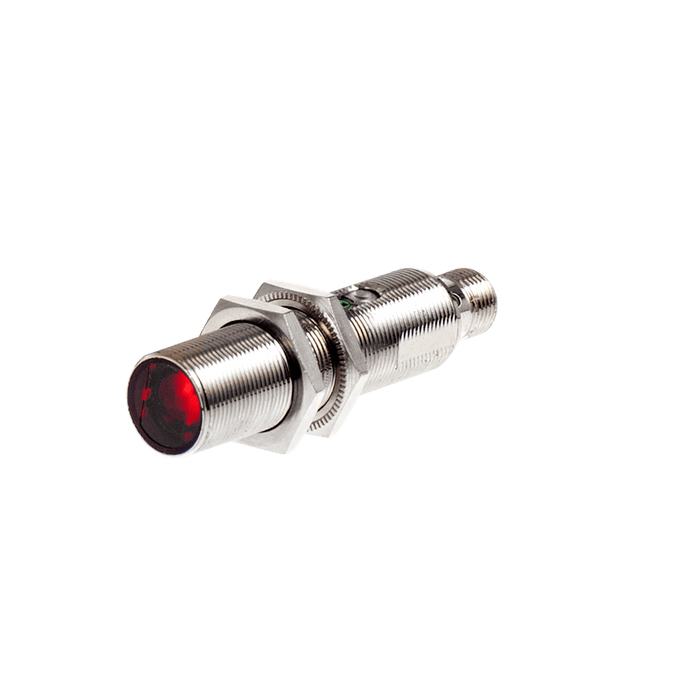

Photoelectric Sensor, OM18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 100 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OM18-TK100VN6Q

SKU OM18-TK100VN6Q
by ELCO Industrial Automation

Photoelectric Sensor, OM18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 100 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$52.34 - $52.34
$52.34
$52.34 - $52.34
$52.34
Availability:
In stock

Photoelectric Sensor, OM18-Series, Diffuse reflective vitreous body detect, Infrared beam, Operating range 100 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Detection method Diffused
Connection type M12, 4-pin
Anti-ambient light ≤ 5000 lux
Connection Connector
IP rating IP67
Sensing range 100 mm
Light source Infrared LED
Spot size 15 mm @ 100 mm
Output type NPN
Output status L.O + D.O
Switching frequency 100 Hz
Supply voltage 10 ... 30 V DC

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18-TK_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-TK100_V1.0_EN&CN.pdf
