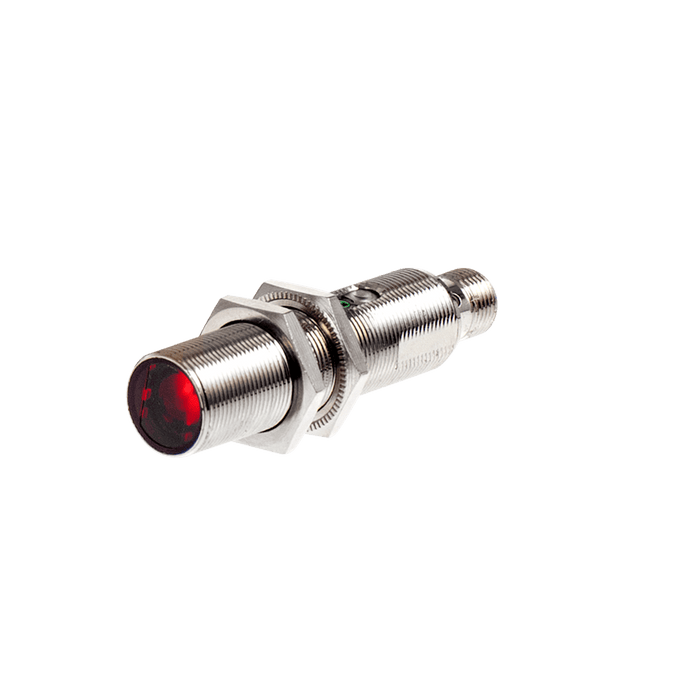

Photoelectric Sensor, OM18-Series, Opposed, Emitter, Laser beam, Operating range 30 m, 10…30V DC, -25…65°C, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Detection method Opposed (Emitter)
Sensing range 30 m
Light source Red laser / Class 1
Spot size 5 mm @ 5 m
Supply voltage 10 ... 30 V DC
Anti-ambient light ≤ 5000 lux
Connection Connector
IP rating IP67
Housing material Nickel plated brass
Ambient temperature -25 … +65 ℃

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-Q12_V1.0.stp
Manual UM_SP_OM18-SEL30_V1.0_EN&CN.pdf
