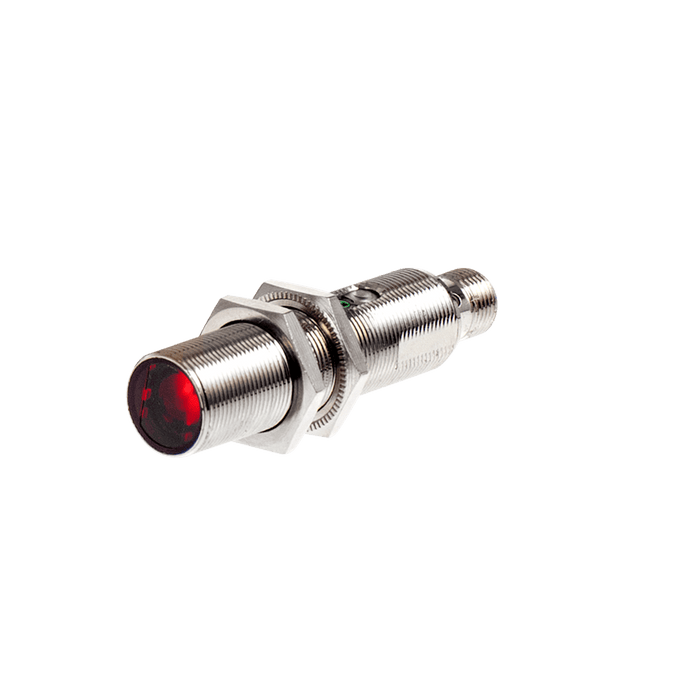

Photoelectric Sensor, OM18-Series, Opposed, Emitter, Infrared beam, Operating range 10 m, 10…30V DC, -25…65°C, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Supply voltage 10 ... 30 V DC
Sensing range 10 m
Light source Infrared LED
Spot size 90 mm @ 1 m
Detection method Opposed (Emitter)
Housing material Nickel plated brass
IP rating IP67
Connection Connector
Anti-ambient light ≤ 5000 lux
Ambient temperature -25 … +65 ℃

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-Q12_V1.0.stp
Manual UM_SP_OM18-SE_V1.0_EN&CN.pdf
