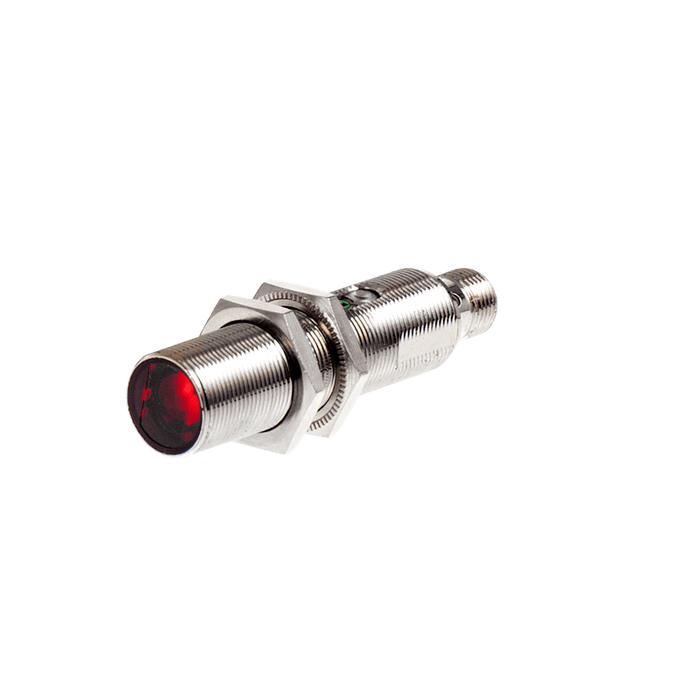

Photoelectric Sensor, OM18-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OM18-RPVN6Q

SKU OM18-RPVN6Q
by ELCO Industrial Automation

Photoelectric Sensor, OM18-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$47.71 - $47.71
$47.71
$47.71 - $47.71
$47.71
Availability:
In stock

Photoelectric Sensor, OM18-Series, Polarized retro-reflective, Red beam, Operating range 3 m, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Detection method Polarized Retro-reflective
Sensing range 3 m
Light source Red LED
Spot size 70 mm @ 1 m
Supply voltage 10 ... 30 V DC
Ambient temperature -25 … +65 ℃
Connection Connector
IP rating IP67
Anti-ambient light ≤ 5000 lux
Housing material Nickel plated brass

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-RP_V1.0_EN&CN.pdf
