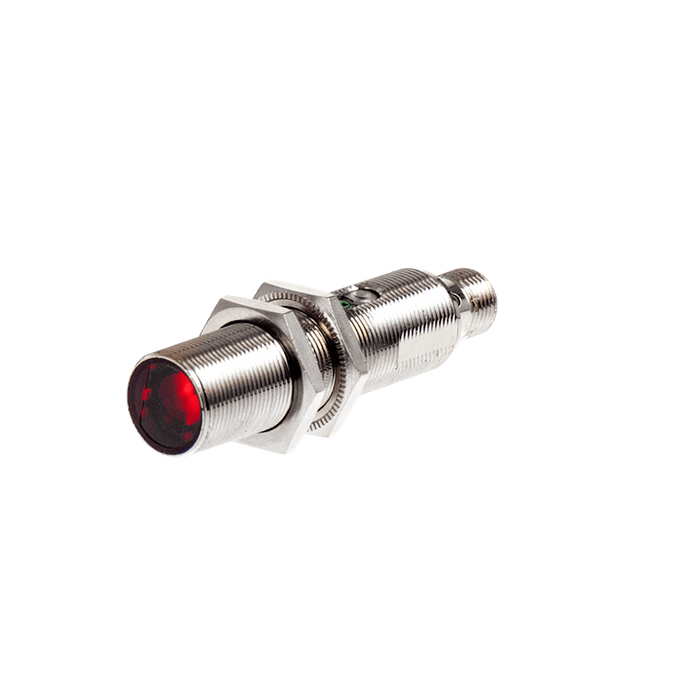

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 600 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

OM18-K600VP6Q

SKU OM18-K600VP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 600 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

$45.39 - $45.39
$45.39
$45.39 - $45.39
$45.39
Availability:
In stock

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 600 mm, PNP, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, M12 4-pin connector

Specifications

Connection type M12, 4-pin
Supply voltage 10 ... 30 V DC
Load current ≤ 100 mA
Ambient temperature -25 … +65 ℃
Anti-ambient light ≤ 5000 lux
Housing material Nickel plated brass
Connection Connector
IP rating IP67
Detection method Diffused
Sensing range 600 mm
Light source Infrared LED

No additional information at this time.

Downloads

CE CE_SP_OM18_V1.0_EN.pdf
Datasheet ELCO_OM18_DataSheet_CN.pdf
Datasheet DS_SP_OM18_V1.0_EN.pdf
3D Drawing CAD_SP_OM18-AP-Q12_V1.0.stp
Manual UM_SP_OM18-K600_V1.0_EN&CN.pdf
