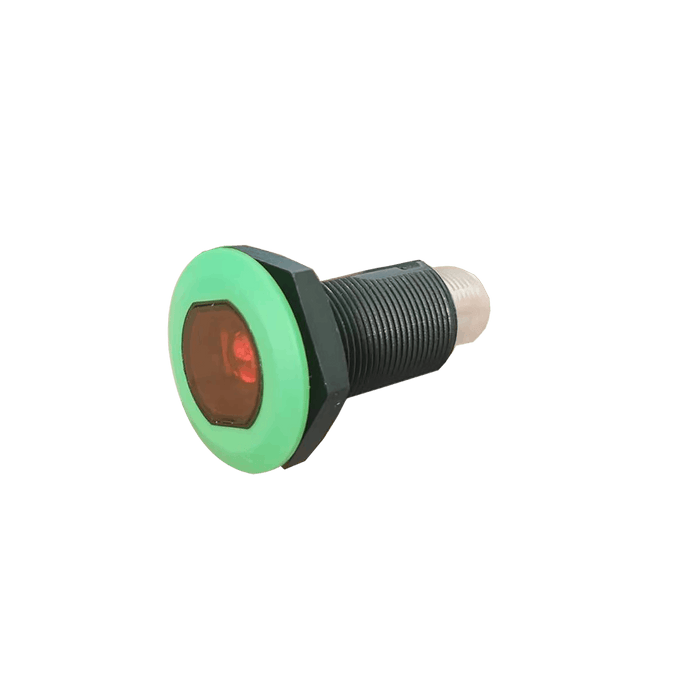

Photoelectric Sensor, OG18-Series, Opposed, Emitter, Infrared beam, Operating range 30 m, 10…30V DC, -25…55°C, IP67, M12 4-pin connector

Specifications

Detection method Opposed (Emitter)
Sensing range 30 m
Light source Infrared LED
Spot size 23 cm @ 5 m
Connection type M12, 4-pin
Ambient temperature -25 … +55 ℃
Connection Connector
IP rating IP67
Supply voltage 10 ... 30 V DC
Anti-ambient light ≤ 5000 lux
Housing material PBT + ABS

No additional information at this time.

Downloads

CE CE_SP_OG18_V1.0_EN.pdf
Datasheet ELCO_OG18_DataSheet_CN.pdf
Datasheet DS_SP_OG18_V1.0_EN.pdf
3D Drawing CAD_SP_OG18-Q12_V1.0.stp
Manual UM_SP_OG18-SE_V1.0_EN&CN.pdf
